Depaneling-induced stress exceeding 300 microstrain (με) in FR-4 PCBs with thickness below 1.0mm consistently correlates with CSP and BGA component cracking during subsequent reflow cycles, with failure rates increasing from 0.02% at 150με to 3.7% at 450με according to IPC-9701 thermal cycling validation data. Maintaining depaneling stress below 200με requires precise control of router feed rates (20-80 mm/s), spindle speeds (40,000-80,000 RPM), and tool condition monitoring. When depaneling machines drift out of calibration, stress increases rapidly, making fast service response critical for production yield. Kunshan’s location in the Yangtze River Delta provides significant logistics advantages for PCB manufacturers requiring rapid support.
Same-Day Service Response for Precision Calibration Requirements

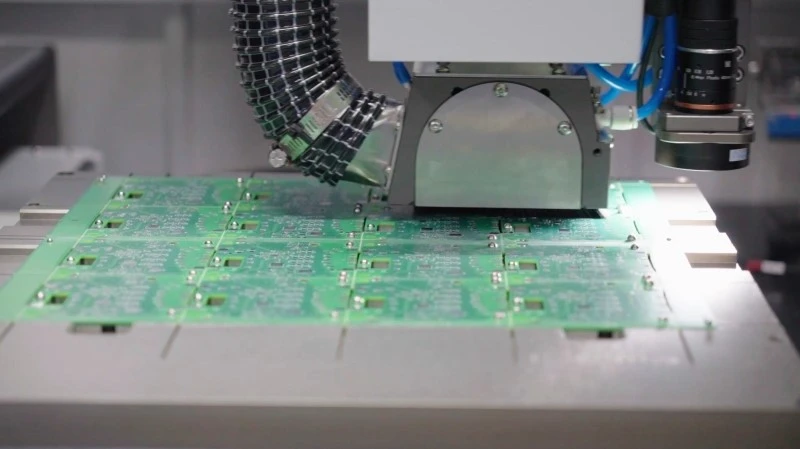

Depaneling machines using mechanical routing achieve positioning accuracy of ±0.05mm and repeatability of ±0.02mm when properly calibrated. Spindle bearing wear and guide rail contamination cause gradual drift, with positioning errors increasing by 0.01-0.03mm per 500 hours of operation. When accuracy degrades beyond ±0.10mm, router bit deflection increases, generating higher cutting forces and board stress. Corrective action requires on-site recalibration using laser interferometer systems. Overseas suppliers typically schedule service 2-3 weeks in advance, while Kunshan-based suppliers can dispatch technicians to Yangtze River Delta sites within 2-4 hours, enabling same-day calibration. For high-volume SMT lines producing 5,000-10,000 boards daily, one day of depaneling capacity loss represents 15,000-30,000 boards of unfulfilled demand.
Reduced Lead Times for High-Speed Spindle Replacement
High-speed spindles at 60,000-80,000 RPM have bearing service life of 800-1,500 hours. Failure modes include increased radial runout (exceeding 5μm), abnormal acoustic emissions (>75 dB), and elevated temperature (>65°C above ambient). When bearings fail, cutting quality degrades immediately, with surface roughness increasing from <2μm to >8μm and burr formation increasing 300-500%. Production cannot resume until spindle replacement. Kunshan suppliers maintain local inventory, enabling 4-8 hour delivery within Yangtze River Delta. Air freight from European or North American manufacturers requires 3-5 business days plus customs, extending lead time to 7-10 days. The 6-9 day difference translates to 90,000-180,000 boards of lost production for a typical high-volume line.
Integration with Regional PCB Manufacturing Ecosystem
The Yangtze River Delta contains approximately 65% of China’s PCB fabrication capacity, with major clusters in Suzhou, Wuxi, Changzhou, and Shanghai within 100km of Kunshan. Depaneling optimization requires iterative testing to determine optimal feed rates, spindle speeds, and tool paths for specific PCB designs. Optimizing parameters for a new design typically requires 3-5 iterations over 2-3 days to achieve stress below 200με while maintaining throughput above 15 boards/minute. Kunshan suppliers can dispatch application engineers for on-site optimization, reducing design-to-production cycle by 5-7 days compared to distant suppliers. Many also maintain demonstration labs for process validation without disrupting production.
Lower Total Cost of Ownership Through Reduced Freight and Inventory Costs
Mechanical routing machines consume router bits at 50-200 bits per month depending on board complexity. Bit condition directly affects cut quality; worn bits (flank wear >0.05mm) generate 2-3× higher cutting forces and increased board stress. Just-in-time consumable delivery reduces inventory carrying costs (18-24% of consumable value annually). Kunshan suppliers can deliver consumables within 4-12 hours, enabling minimal inventory of 3-5 days supply. Overseas suppliers require minimum orders of 500-1,000 bits with air freight costs of $8-15 per kg, making frequent small deliveries impractical. Local sourcing reduces total cost of ownership by 12-18% over a 5-year equipment lifecycle.
Proximity to Precision Component Supply Chain
High-end depaneling machines incorporate precision linear motion components, servo drive systems, and machine vision modules. Component failure rates for these subsystems range from 0.5-2.0% annually, with lead times of 2-3 weeks for European or North American sources. Kunshan provides access to Yangtze River Delta precision manufacturing, including linear guide manufacturers in Jiangsu and vision system integrators in Shanghai. Local sourcing reduces lead times to 1-2 days for standard items and 5-7 days for customized components. For machines with MTBF of 1,500-2,500 hours, reducing spare parts lead times from 14-21 days to 1-2 days improves equipment availability from 95.2% to 99.1%.
Technical Summary
Kunshan’s central location within the Yangtze River Delta provides measurable logistics advantages for PCB depaneling machine suppliers, including same-day service response, 4-8 hour spare parts delivery, and regional manufacturing integration. These advantages directly improve production metrics: equipment availability increases from 95.2% to 99.1% through reduced lead times, and process optimization cycles decrease by 5-7 days through on-site engineering support. For high-volume SMT lines, this translates to 90,000-180,000 additional boards annually per machine and 12-18% reduction in total cost of ownership. The combination of technical capability and logistics efficiency makes Kunshan strategically significant for Yangtze River Delta PCB operations.
Recommended Equipment
Looking for proven depaneling solutions? Seprays offers a full range of equipment backed by 30+ years of industry experience. Here are two options worth considering for your production line:
- GAM330AT Fully Automatic PCB Depaneling Machine — Self-feeding operation with automatic sorting — ideal for high-volume automated production lines
- ZM30-D Multi-Tool Multi-Group PCB Depaneling Machine — One-time full LED board cutting — daily output exceeding 100,000 pieces with custom configurations
Frequently Asked Questions
Q1: What geographic advantages does Kunshan offer as a PCB depaneling machine supplier hub within the Yangtze River Delta?
A1: Kunshan is positioned within 80 km of Shanghai, Suzhou, and Changshu — forming a dense electronics manufacturing corridor with an estimated 3,000+ SMT lines within a 150 km radius. Proximity to major ports (Shanghai Yangshan, 120 km) enables containerized shipments of heavy depaneling equipment with minimal inland freight cost. This concentration reduces average delivery lead times to 3-5 business days for regional customers versus 7-14 days for suppliers based outside the Delta.
Q2: How does the parts supply chain depth in Kunshan affect maintenance response time for depaneling equipment used in high-volume PCB production?
A2: Kunshan’s mature industrial base means that spindle motors, linear guides, CNC rails, and blade consumables are typically available from local stocking distributors within 24-48 hours, minimizing unplanned downtime. For high-volume lines running 18-24 hours per day, a spare spindle assembly kept on-site (costing approximately 8-12% of machine price) can be swapped in under 2 hours, restoring full production capacity without waiting for overseas parts shipments that could take 5-10 days.
Q3: What logistics cost savings can an electronics manufacturer expect when sourcing PCB depaneling machines from Kunshan suppliers compared to inland or overseas alternatives?
A3: For manufacturers within the Yangtze River Delta, domestic overland freight for a standard single-spindle depaneling machine (approximately 800-1,200 kg crated) typically ranges from CNY 800-2,000, versus CNY 15,000-35,000 for ocean freight, customs clearance, and inland haulage for equipment shipped from Taiwan or Japan. Combined with zero import tariff under CEPA and Chinese domestic VAT recovery provisions, total landed cost savings can reach 15-25% of machine purchase price for buyers in Jiangsu and Zhejiang provinces.
