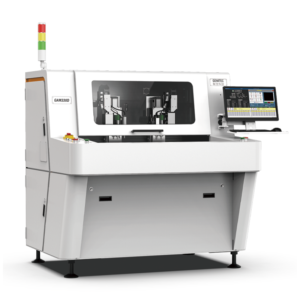

1. The 7 Root Causes of PCB Router Problems

Across thousands of field service tickets on PCB router machines, seven issues account for 85% of all defects:

1. Worn or wrong bit
2. Spindle RPM mismatch with material
3. Vision misalignment
4. Insufficient dust extraction
5. Feed rate too fast for stack-up
6. Panel fixturing inadequate
7. Software recipe mismatch

Each symptom points to one of these causes. A 5-minute diagnostic flow saves 2 hours of trial-and-error.

2. Problem: Edge Cracking After Cut

Symptom: Hairline cracks along the cut edge, visible after reflow or thermal-shock test.

Most likely cause: Bit is dull or wrong grade for the laminate.

Fix:

1. Inspect the bit under 10× magnification. If the cutting edge has any chip or rounding, replace.
2. Verify bit grade matches material: tungsten carbide for FR-4, diamond-coated for high-Tg or ceramic-filled laminates.
3. Reduce spindle RPM by 20% and re-test. If cracks disappear, RPM was too high for that material.
4. Check feed rate. A feed rate above 150 mm/min on FR-4 generates micro-fractures along the cut edge.

3. Problem: Bit Breakage During Cut

Symptom: Bit snaps mid-cut, often leaving fragments in the cut path.

Most likely cause: Panel is flexing under the bit’s lateral force, or the bit is striking a metal feature (screw head, copper pour, edge plating).

Fix:

1. Inspect the cut path in the recipe — look for any segment that crosses a metal feature the CAD system didn’t flag.
2. Reduce feed rate to 50% of current setting and re-test. If breakage stops, lateral force was the cause.
3. Check the fixture vacuum pressure. Under 60 kPa vacuum lets thin panels flex.
4. Verify the bit is fully seated in the collet. A bit protruding more than 12 mm has 3× higher breakage risk.

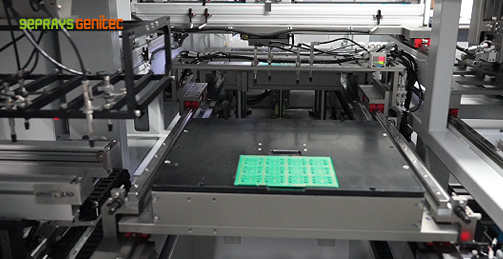

4. Problem: Vision Alignment Errors

Symptom: Machine reports fiducial not found, or cut is offset by 0.5–2.0 mm.

Most likely cause: Camera lens is dusty, OR panel illumination is uneven, OR fiducial is contaminated.

Fix:

1. Wipe the camera lens with IPA and lint-free swab.
2. Check the panel illumination LEDs. A dim or flickering LED changes the apparent fiducial position by 0.1–0.3 mm.
3. Inspect the fiducial marks on the panel — solder paste or flux residue can mask the fiducial contrast.
4. Run the camera calibration routine. If it fails, the camera sensor may need replacement (rare; usually a wiring issue).

5. Problem: Rough or Chipped Cut Edge

Symptom: Visible burrs or delamination at the cut edge.

Most likely cause: Feed rate is too fast for the stack-up, or the bit has only one flute (should be 2-flute for clean cuts).

Fix:

1. Reduce feed rate by 30%.
2. Check bit specification: 2-flute bits produce cleaner edges than 1-flute at the same feed rate.
3. Verify the bit is sharp. A dull bit tears laminate rather than cutting it.
4. Inspect for chip buildup on the bit. Clean with a brass brush (not steel — it damages the bit coating).

6. Problem: Excessive Dust in the Work Area

Symptom: Visible dust around the machine, dust settling on the panel, or dust collector motor running hot.

Most likely cause: Dust extraction is undersized for the cut rate, or the dust hose has a leak.

Fix:

1. Check the dust extraction hose for cracks or loose clamps. The vacuum drop from a 1 mm gap is 30%.
2. Empty the dust collector bin. A full bin drops extraction to 50%.
3. Replace the HEPA pre-filter monthly. A clogged pre-filter is the #1 cause of dust collector motor failure.
4. Verify the extraction nozzle is positioned within 5 mm of the cut zone. A nozzle 20 mm away captures 50% less dust.

7. Problem: Spindle Runs Hot or Noisy

Symptom: Spindle housing temperature above 60 °C, or audible bearing noise.

Most likely cause: Dust contamination in bearings, or bearing wear.

Fix:

1. Run the spindle warm-up cycle. A cold-start spin on a worn bearing accelerates failure.
2. Check the dust extraction at the spindle housing. Most modern PCB router machines have a dedicated extraction port near the spindle.
3. Measure spindle vibration with a handheld analyzer. RMS velocity above 4 mm/s indicates bearing wear has begun.
4. Schedule spindle replacement. With a spare spindle on hand, swap is 4 hours. Without, it’s 2 days plus shipping.

8. Diagnostic Flowchart

When you see a defect on the cut edge:

1. Inspect the bit — dull or chipped? Replace and re-test.
2. Reduce feed rate by 30% — defect disappears? Feed was too fast.
3. Reduce spindle RPM by 20% — defect disappears? RPM was too high for the material.
4. Verify the recipe matches the stack-up — wrong recipe in wrong machine?
5. Check fixture vacuum — weak vacuum = panel flex = tear-out.

If none of these resolve the issue in 30 minutes, contact the manufacturer with: machine serial number, spindle hours, last maintenance date, and a photo of the defect. Most service teams resolve the issue remotely within an hour.

For preventive maintenance procedures that prevent 80% of these issues, see our PCB router machine maintenance guide and the laser depaneling product page.

About Seprays Precision Machinery

Founded in 1993, Seprays Precision Machinery has over 30 years of expertise in PCB depaneling solutions. With two manufacturing facilities totaling 26,000 m², 9 service centers across China, and clients in 31 countries — including Foxconn, Flex, Luxshare, Bosch, and CRRC — Seprays delivers equipment that consistently meets the demanding tolerances of automotive, medical, aerospace, and consumer electronics production lines.

Certifications: ISO 9001, ISO 14001, ISO 45001, CE. Patents: 100+. Need a customized depaneling solution or want to discuss your specific production requirements? Our technical team is ready to help. Contact: jimmy@seprays.com

FAQ

Q1: What spindle speed is right for FR-4 PCB routing?
A: 40,000–60,000 RPM is the standard range for FR-4. Lower speeds cause tearing; higher speeds require diamond-coated bits.

Q2: How often should I replace the spindle on a PCB router machine?
A: Every 25,000 hours in a clean environment, 12,000–15,000 hours with average dust management, 8,000 hours if dust extraction is poor.

Q3: Can a PCB router machine cut ceramic PCBs?
A: Yes, with diamond-coated bits and reduced feed rates (30–60 mm/min). For ultra-thin ceramics, consider laser depaneling instead.

Q4: What is the typical bit life on FR-4?
A: 30–80 m of cut per bit, depending on stack-up thickness and RPM. Plan $0.10–0.30 in bit cost per board.

Q5: How do I know if my spindle bearings are wearing?
A: Audible noise, vibration above 4 mm/s RMS, or degraded cut quality that doesn’t improve with bit replacement. Plan a spindle swap.
