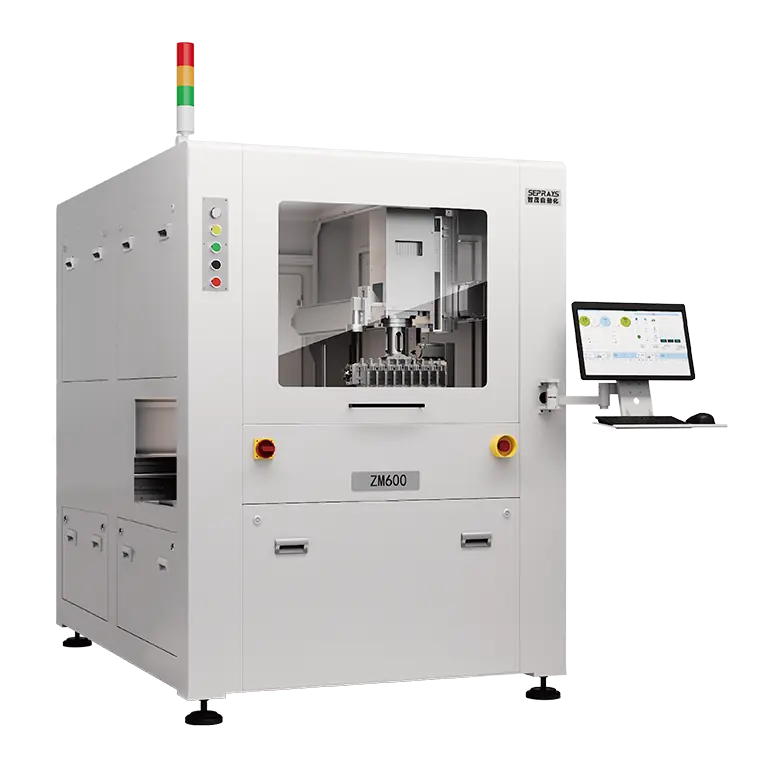

ZM600 PCB Fully Automatic Tray Palletizer

The ZM600 is a fully automatic PCB/PCBA tray loading and stacking machine designed to collect finished boards directly from inline PCB depaneling equipment.

Automatically receives and transfers individual PCBAs from an inline PCB depaneling machine.
Places PCB/FPC products into trays according to programmed positions and orientations.
Handles tray conveying and stacking to support continuous downstream collection.
Optional MES integration, NG sorting and AGV docking support flexible production line automation.

Send us your PCBA dimensions, tray drawings and production line requirements for a tailored ZM600 tray handling solution and quotation.

Get A Quote

Details

Product Details

Overview

The SEPRAYS ZM600 is an automatic PCB/FPC collection and tray palletizing machine designed for downstream handling after inline depaneling. It receives finished boards through a shuttle fixture, uses a vacuum pickup mechanism to place products into trays, and automatically conveys and stacks filled trays to reduce manual collection.

Core Advantages

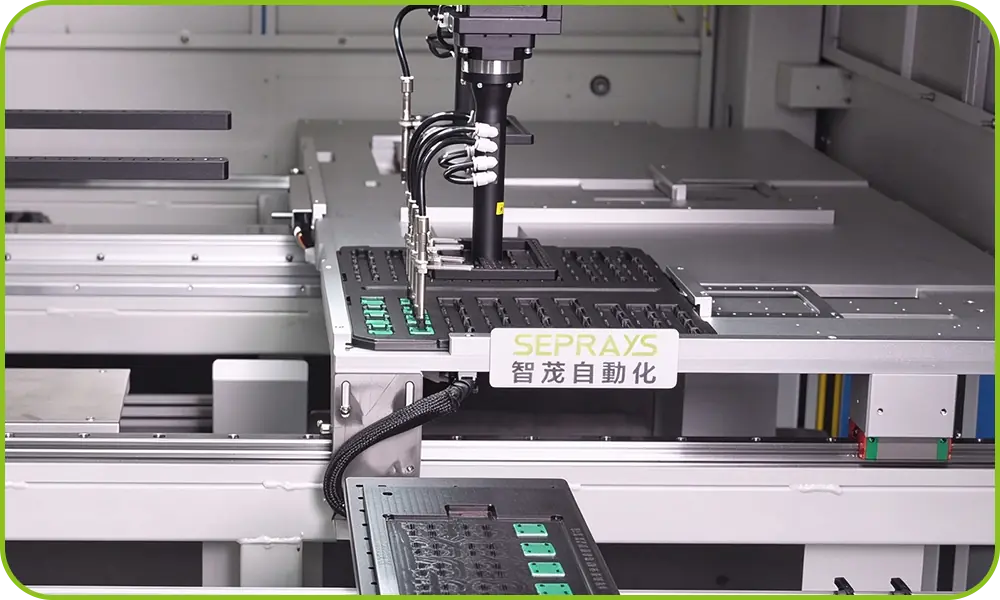

ZM600 Precision Automatic PCBA Tray Loading

Precision Automatic Tray Loading

Servo-driven transfer and pickup mechanisms provide ±0.2 mm tray loading accuracy and ±0.05 mm transfer repeatability. Built-in pickup/drop sensing helps monitor board handling and reduce the risk of unnoticed pickup failures.

Automatic Tray Conveying & Stacking

A belt conveyor, tray holding mechanisms and dual lifting stacks manage tray movement and full-tray collection automatically. This reduces frequent manual tray changes and supports continuous production after depaneling.

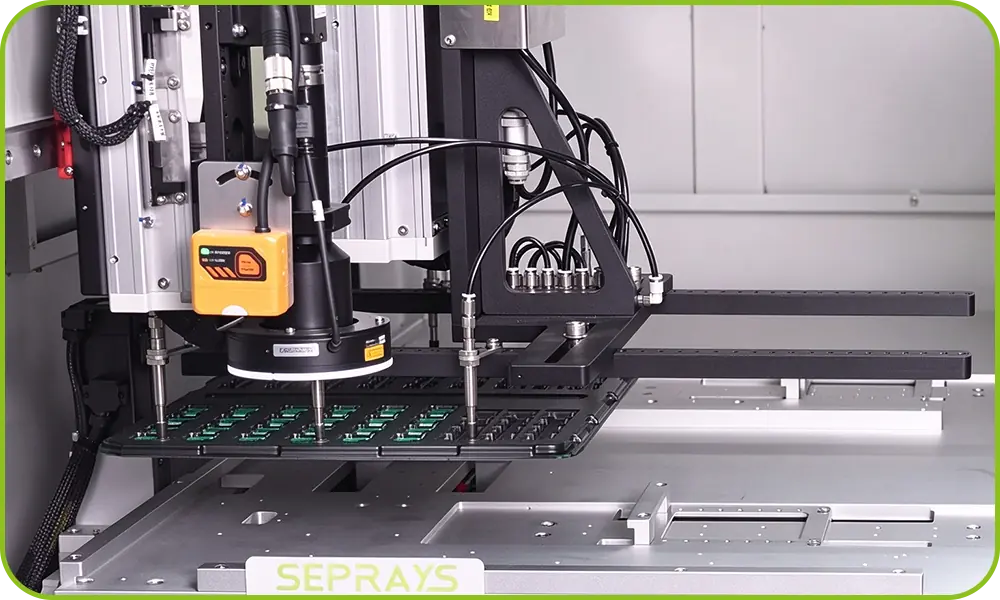

ZM600 Automatic Tray Conveying and Stacking System

Flexible OK/NG Sorting

Optional MES integration, cutting inspection and NG sorting allow defective boards to be identified using inspection results or MES-provided board positions. NG boards can be discharged through a separate conveyor while qualified products continue to tray loading. Optional AGV docking supports automated tray logistics.

Application

What PCB/FPC Products and Production Lines Are Suitable for the ZM600?

The ZM600 is suitable for PCB, PCBA, FPC and electronic module products that require automatic collection, organized tray placement and stacked output after depaneling.

It can be integrated downstream of an inline PCB router machine for products requiring controlled pickup positions and consistent tray orientation. Typical applications include 3C electronics, automotive electronics, electronic modules and storage products.

ZM600 Automatic PCB Tray Palletizer FAQ

1. What is the difference between the ZM600 and a PCB depaneling machine?

A PCB depaneling machine separates PCB panels into individual boards, while the ZM600 handles finished-board collection, automatic tray loading and tray stacking. The ZM600 does not perform PCB cutting and is designed to work downstream of depaneling equipment.

2. Can the ZM600 connect to an inline PCB router machine?

Yes. The ZM600 is designed for downstream collection after inline PCB routing. The connection arrangement depends on the board transfer method, production line direction, operating height and equipment interfaces.

3. What tray sizes does the ZM600 support?

The ZM600 supports trays ranging from 300 × 200 mm to 600 × 450 mm, with heights from 10 to 40 mm. Final compatibility depends on the tray structure, positioning requirements and PCBA layout.

4. How does the ZM600 detect pickup failures or dropped boards?

The ZM600 includes a pickup/drop board sensing function to monitor board handling during transfer. The pickup configuration should be selected according to PCBA weight, component arrangement and available suction areas.

5. Can the ZM600 separate OK and NG boards?

Yes, with the optional NG sorting configuration. The machine can use MES-provided board information or an optional cutting inspection system to direct NG boards to a separate discharge conveyor.

6. Does the ZM600 support AGV integration?

Yes. Optional AGV docking is available for automated tray material handling. Integration requirements depend on the AGV system, tray dimensions and factory layout.

7. Can the ZM600 handle PCBAs with different shapes?

The ZM600 can handle PCB, FPC and electronic module products of different sizes. Pickup options, including rotary handling and configurable nozzle arrangements, can be evaluated according to product shape and available pickup areas.

8. What information is needed for a ZM600 quotation?

Please provide individual PCBA/FPC dimensions, weight, component layout, available pickup positions and tray drawings. Tray capacity, loading orientation, target output, depaneling machine discharge method and MES/AGV requirements are also helpful.

Why Choose SEPRAYS?

SEPRAYS Operation and Maintenance Training

Operation and Maintenance Training

Helps production teams master machine operation to improve efficiency

SEPRAYS Remote Technical Support

Remote Technical Support

Provides efficient technical coordination and problem-solving capabilities

SEPRAYS 24/7 Service

24/7 Service

SEPRAYS 24/7 service support ensures rapid response to requests

SEPRAYS Regular Overseas Visits

Regular Overseas Visits

Regular overseas visits to facilitate face-to-face technical exchanges

Contact SEPRAYS

Looking to automate PCB/PCBA collection, tray loading and stacking after inline depaneling?

SEPRAYS can help evaluate the ZM600 based on your product dimensions, pickup requirements, tray design and production line interfaces.

Email: millie@seprays.com

WhatsApp: +86 139 2552 7370

Address: 5th Floor, B2 Building Research Center Songshan Lake Intelligent Valley, Liaobu Town, Dongguan City, Guangdong Province, China

Parameter

Technical Specifications

Parameters

ZM600
Acceptable Tray Size

Min. 300 × 200 mm; Max. 600 × 450 mm; Height: 10–40 mm
Operating Height

900 ±20 mm
Tray Flow Direction

Left to Right or Right to Left
Transfer Method

Servo Motor, Screw Module, Belt Module
Loading Method

Shuttle Fixture
Tray In/Out Method

Belt Conveying
Maximum Moving Speed

Z-Axis Lift and Drop: 500 mm/s; Shuttle X-Axis Conveying: 1000 mm/s
Tray Loading Accuracy

±0.2 mm
Transfer Repeatability

±0.05 mm
Pickup/Drop Board Sensing

Equipped
MES Integration

Optional
AGV Docking

Optional
NG Sorting

Optional
Compatible Equipment

Inline PCB Router Machine / AGV
Power Supply

AC 220V / 50 Hz / 4.5 kW
Air Supply Requirements

0.5–0.7 MPa / 220 L/min
Machine Dimensions

1500 × 2000 × 1750 mm
Machine Weight

850 kg
