Overview

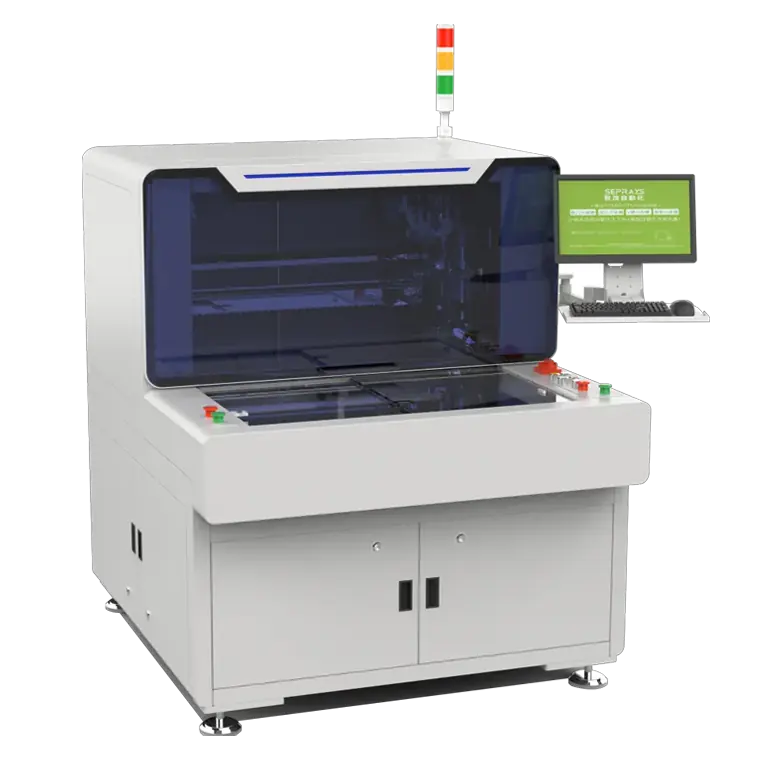

The ZM300SV is an offline PCB depaneling system that combines manual loading with automatic Mark-point recognition and programmed saw-blade cutting on alternating dual worktables.

The standard cycle includes manual loading, fixture-cover positioning, Mark-point recognition, saw-blade cutting, and automatic table return for unloading.

Core Advantages

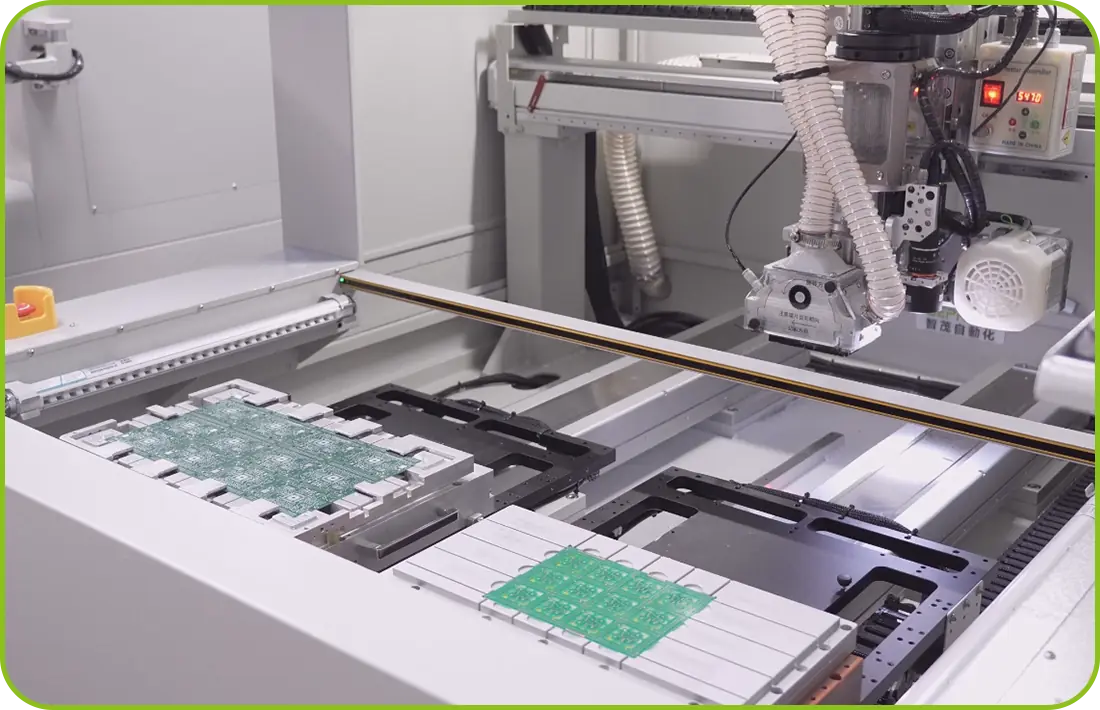

Dual-Table Alternating Processing

The two worktables operate alternately, allowing one station to be loaded or unloaded while the other enters the cutting area for recognition and depaneling. This reduces waiting time between processing cycles.

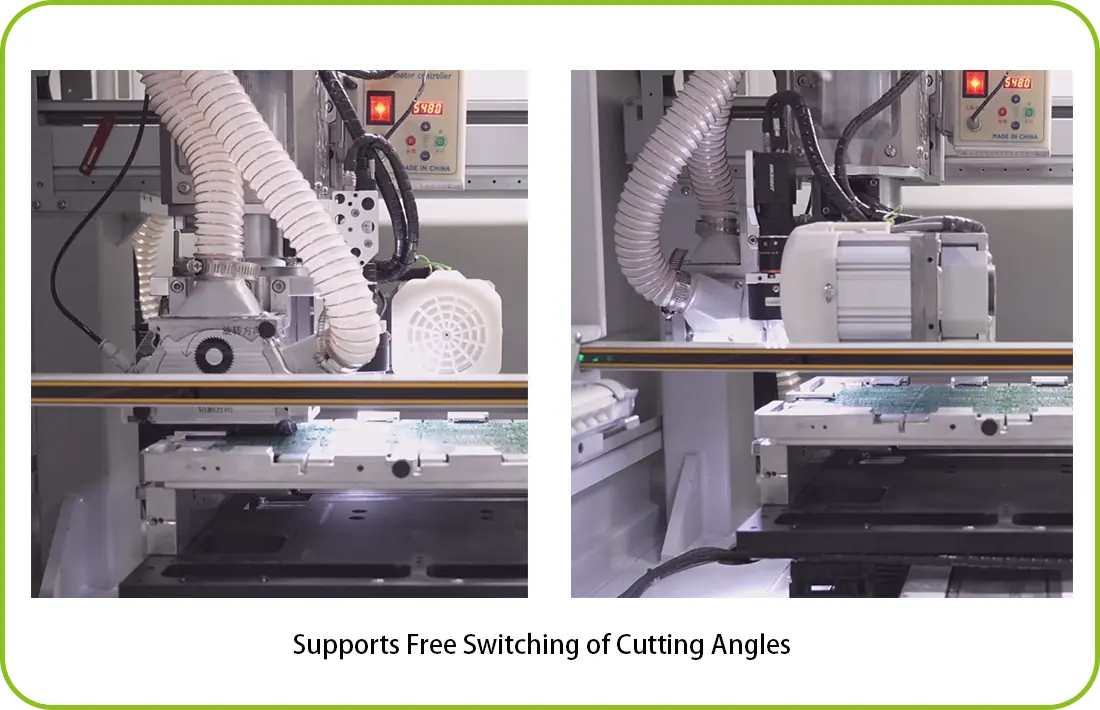

90° / 180° Cutting Direction Switching

The saw-blade cutting direction can be switched to match V-grooves arranged in different directions on the PCB panel. This allows different straight-line cutting orientations to be completed on the same machine.

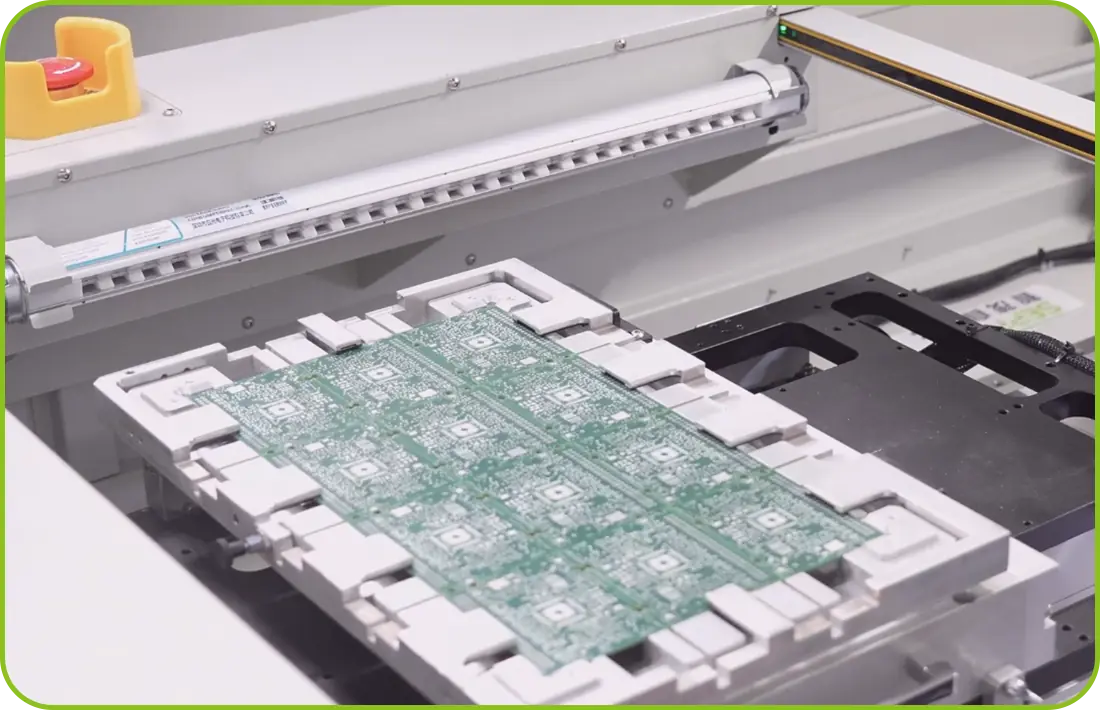

Cover and High-Negative-Pressure PCB Holding

The PCB is secured through a combination of the fixture cover and high-negative-pressure suction. This helps limit board movement during saw cutting and improves processing stability.

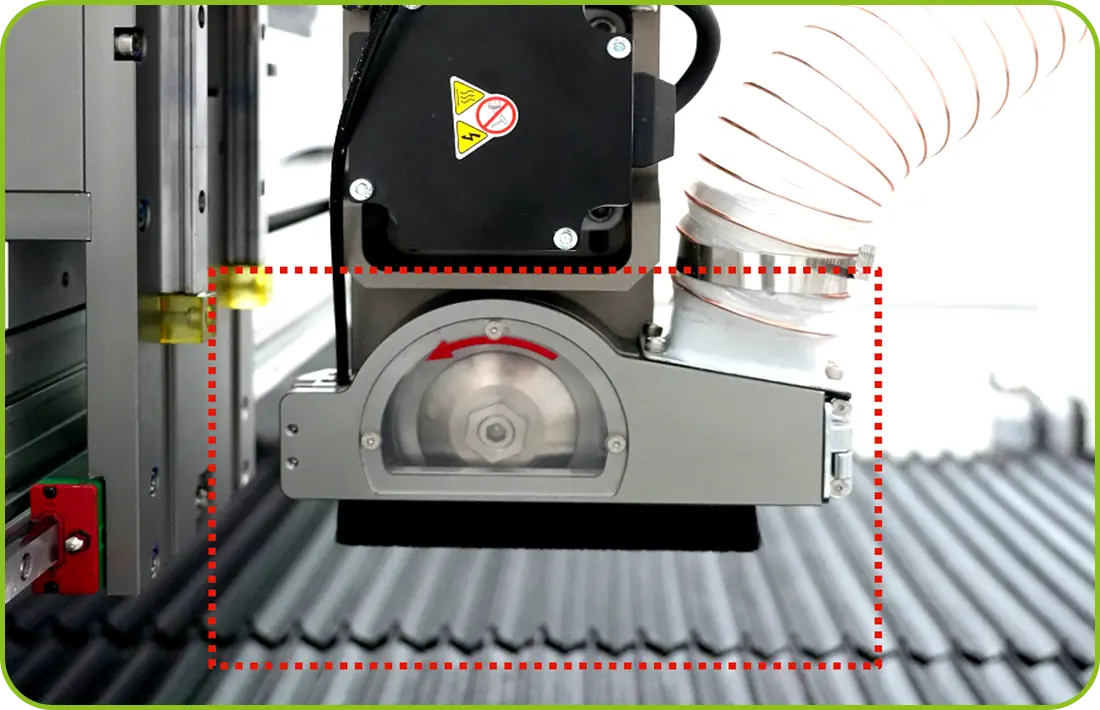

Fixed Dust-Proof Brush

A fixed dust-proof brush encloses the saw-blade cutting area to help contain particles at the source. It works together with the top dust collection system to reduce dust spreading inside and outside the processing area.

ZM300SV Off-line V-groove Saw Blade PCB Depaneling Machine FAQ

1. What PCB size can the ZM300SV process?

The ZM300SV supports an effective cutting area of 330 × 420 mm. For larger PCB panels, the ZM300SVL provides a 430 × 520 mm processing area.

2. Can the ZM300SV be equipped with barcode reading?

Yes. A barcode camera is available as an optional configuration for projects that require product barcode recognition.

3. Why does the ZM300SV use dual worktables?

The two worktables operate alternately. While one table is used for recognition and cutting, the second table can be used for manual loading or unloading to reduce waiting time between cycles.

4. Can the ZM300SV be configured with automatic height measurement?

Yes. Automatic height measurement is available as an optional function for applications that require an additional product-height checking step before processing.

5. Can the saw-blade cutting speed be adjusted?

Yes. The cutting speed can be adjusted from 1 to 100 mm/s according to the PCB and processing requirements.

6. Does the ZM300SV include static elimination?

Yes. The machine is equipped with an ionizing air system to assist with static elimination during production.

7. Can the dust collection system monitor negative pressure?

Negative-pressure monitoring is available as an optional function for projects that require dust-collection pressure status monitoring.

8. What information should I provide when requesting a quotation?

Please provide your PCB drawing, board dimensions, V-groove quantity and direction, cutting path, component layout, and production requirements. If barcode reading, automatic height measurement, or other optional functions are required, please include them in your project requirements.
