ZM300H Router + Saw Blade PCB Depanelizer

Overview

The SEPRAYS ZM300H is an offline PCB depanelizer designed for PCB and PCBA panels with different connection structures. It combines independent router-bit and saw-blade cutting systems, allowing manufacturers to process irregular contours, straight cuts, mouse-bite tabs, V-cut grooves, and breakaway rails within one machine.

For factories handling varied PCB designs or frequent product changeovers, the ZM300H provides a practical way to combine two depaneling processes without using separate machines.

Core Advantages

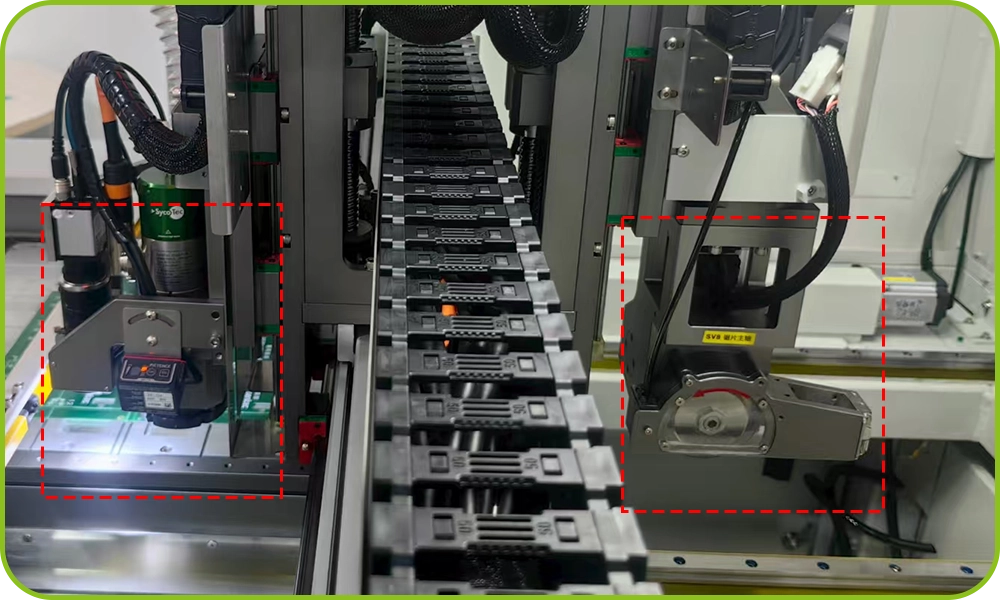

Independent Dual Z-Axis Control

The router and saw blade have independent Z-axis cutting mechanisms, allowing each tool to operate according to its own cutting requirements. Operators can switch between straight-line and complex contour cutting without changing machines.

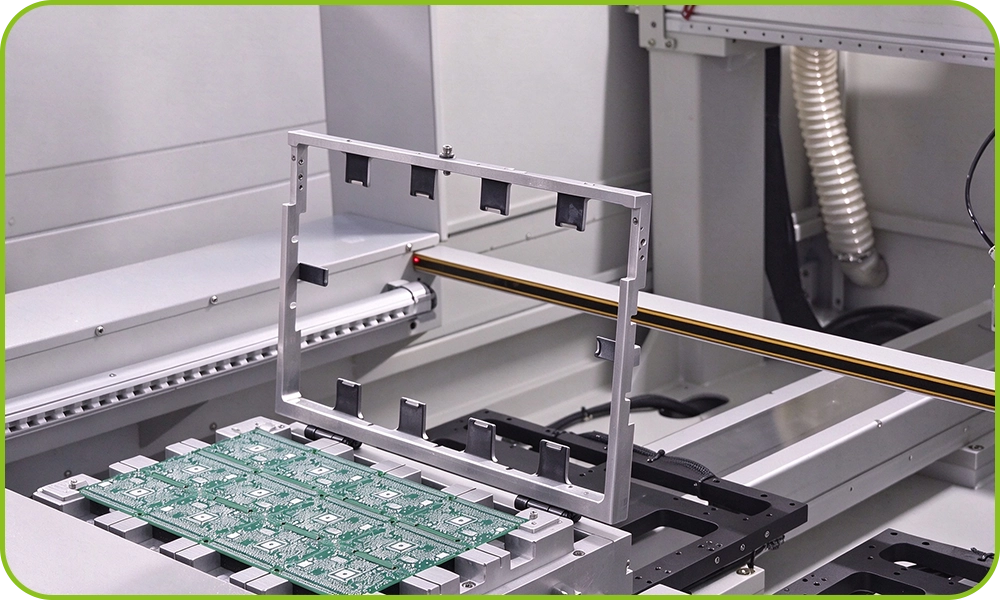

Cover & Vacuum Holding

A holding cover and high-vacuum suction secure the PCB simultaneously, improving cutting accuracy, processing stability, and compatibility with different PCB designs.

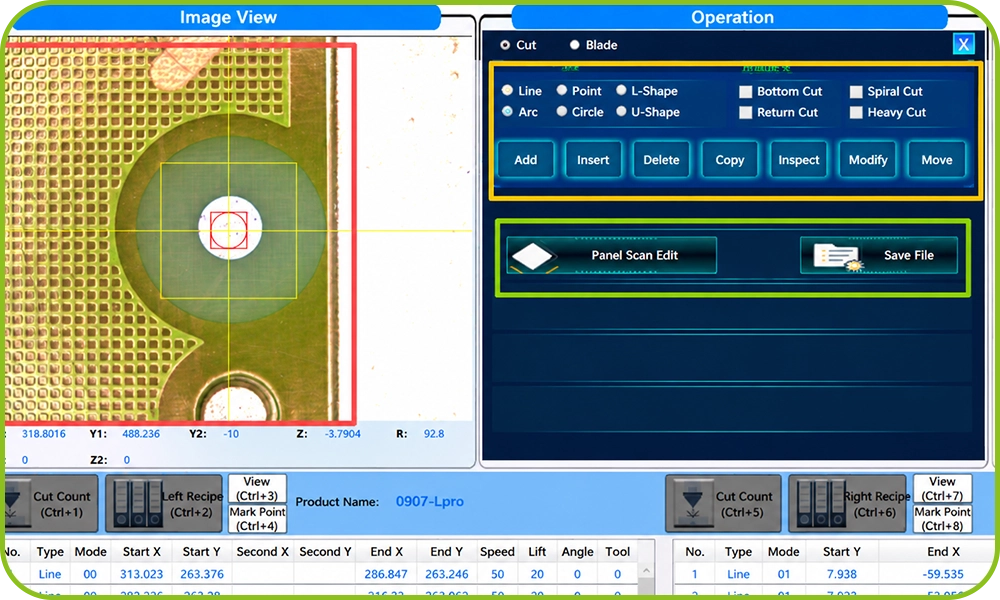

Multi-Mark CCD Alignment

The high-speed CCD vision system supports single and multiple fiducial mark alignment to compensate for PCB positioning deviations. Its intuitive image-based programming also makes cutting-path setup and product changeovers easier.

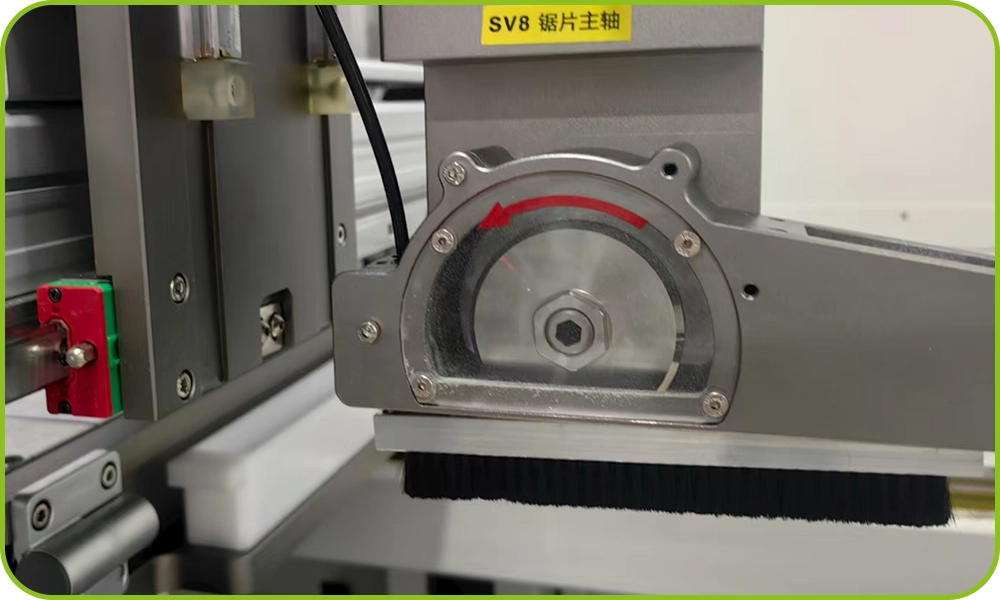

ESD Protection

Built-in static elimination helps reduce electrostatic discharge and dust attraction during depaneling, protecting PCBA components and keeping the cutting area cleaner.

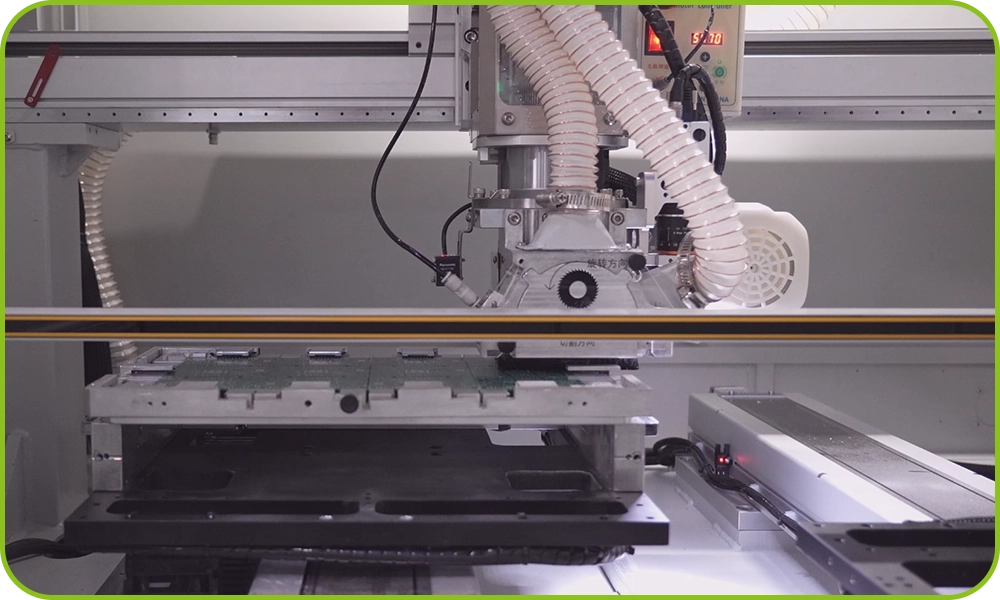

Safety Light Curtain

An independent safety light curtain works together with the machine’s safety enclosure to provide additional protection during manual PCB loading and unloading.

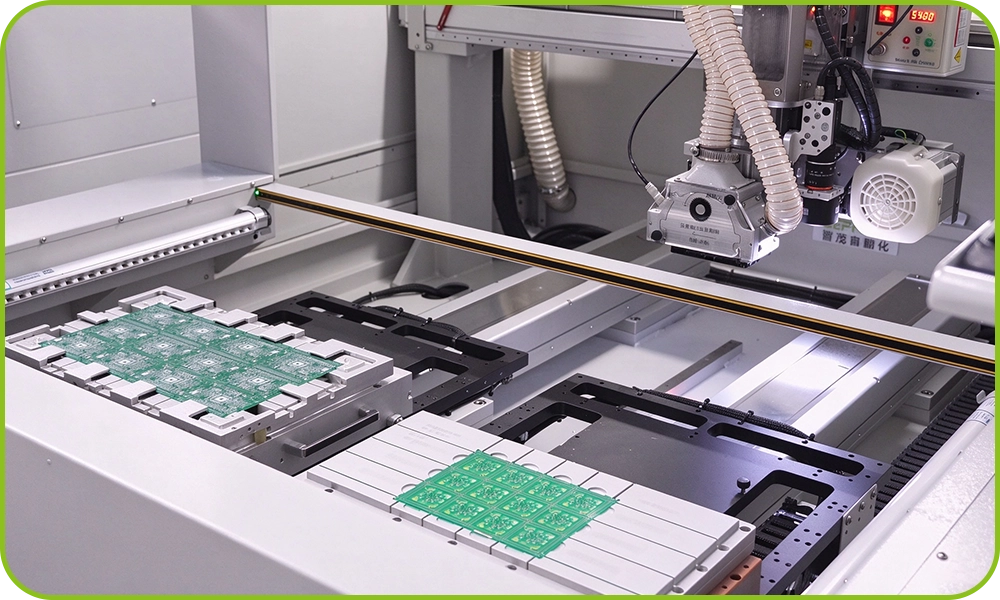

Alternating Dual Worktables

Two servo-driven worktables allow PCB loading and cutting to alternate, reducing waiting time and improving machine utilization.

Application

What PCB Panels Are Suitable for the ZM300H?

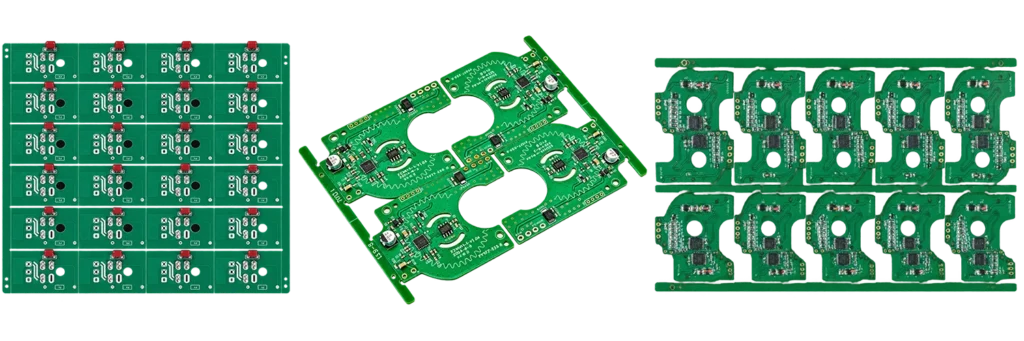

The ZM300H is suitable for rigid PCB and PCBA panels, particularly those with mouse-bite tabs, V-grooves, panel rails, and irregular tab connections. Its combined router and saw blade cutting system handles straight, L-shaped, U-shaped, and curved cutting paths for a wide range of panel layouts.

Which PCB Panels Are Better Suited to Other Depaneling Methods?

For thin or flexible FPC boards requiring non-contact cutting, a Laser PCB Depaneling Machine may be a better choice. PCBAs with tall top-side components and limited cutting clearance may be better suited to the GAM385AT Downcut PCB Router Machine or GAM386AT Downcut PCB Router Machine.

Not sure which depaneling process fits your boards? Contact SEPRAYS for help selecting the right solution.

ZM300H PCB Depanelizer FAQ

1. What is the difference between the ZM300H and a standard PCB router machine?

A standard PCB router mainly uses a rotating router bit to cut programmed paths. The ZM300H combines router-bit milling with an independent saw blade system, allowing straight and irregular cutting processes within one machine.

2. Can the ZM300H process mouse-bite and V-cut PCB panels?

Yes. The machine supports PCB panels with mouse-bite tabs, V-cut grooves, and breakaway rails. The cutting method depends on the panel structure, board thickness, and component layout.

3. Do operators need to manually change between the router and saw blade?

No. The router and saw blade are installed on separate cutting mechanisms and controlled independently, so operators do not need to replace one cutting assembly with the other.

4. Does the ZM300H support automatic router bit changes?

Yes. The machine supports automatic router bit changes, tool inspection, and tool usage management to help maintain consistent operation during production.

5. How does the ZM300H help reduce cutting stress on PCBAs?

The software supports controlled tool entry and exit movements, including slow tool entry and gradual tool withdrawal. These functions help reduce cutting impact near sensitive electronic components.

6. Can the ZM300H identify defective boards in a PCB panel?

With barcode scanning and MES integration, the machine can receive upstream inspection data and display the positions of OK and NG boards within a PCB panel.

7. What is the difference between the ZM300H and ZM300HL?

The ZM300H has a 370 × 420 mm cutting area, while the ZM300HL supports larger panels up to 470 × 520 mm. The two models share the same core cutting functions but differ in machine dimensions and weight.

8. What information should I provide before requesting a quotation?

Please provide your PCB panel dimensions, board thickness, Gerber files or cutting drawings, connection types, component layout, and target production capacity. MES integration requirements can also be included.
