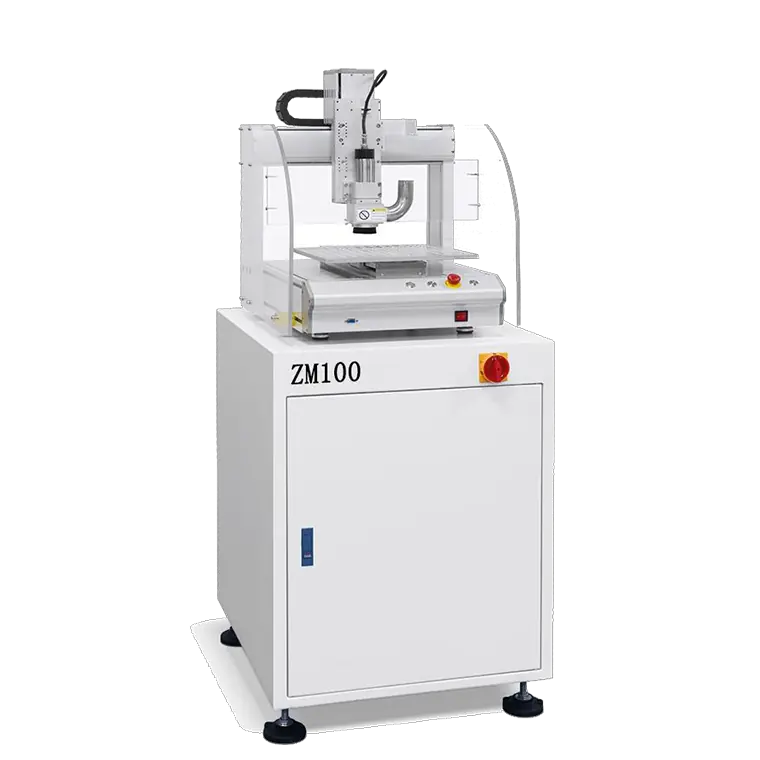

ZM100 Benchtop PCB Router Machine

The ZM100 is a compact single-worktable PCB router for programmed depaneling of small and medium-sized PCB / PCBA panels using handheld controller teaching.

Fully Enclosed Structure: The enclosed cutting area improves operator safety and separates the routing process from the working area.
Handheld Controller Programming: Positioning and tool-path teaching are completed directly through the handheld controller.
Multiple Cutting Profiles: Supports straight, L-shaped, U-shaped, circular, arc and irregular routing paths.

Send us your PCBA dimensions, panel drawing and routing profile to get a ZM100 configuration and quotation.

Get A Quote

Details

Product Details

Overview

The ZM100 uses a high-speed spindle and router bit to separate PCB / PCBA panels along programmed cutting paths. The board is positioned in a fixture, while a handheld controller is used for tool positioning and program teaching. Stepper motors, ball screws and linear guides drive the cutting motion, making the machine suitable for independent compact depaneling stations.

Core Advantages

Low-Stress Cutting for Safer PCBA Depaneling

Routing stress is about 1/10 of punching and 1/100 of manual breaking, helping reduce component damage while producing smooth, clean cut edges.

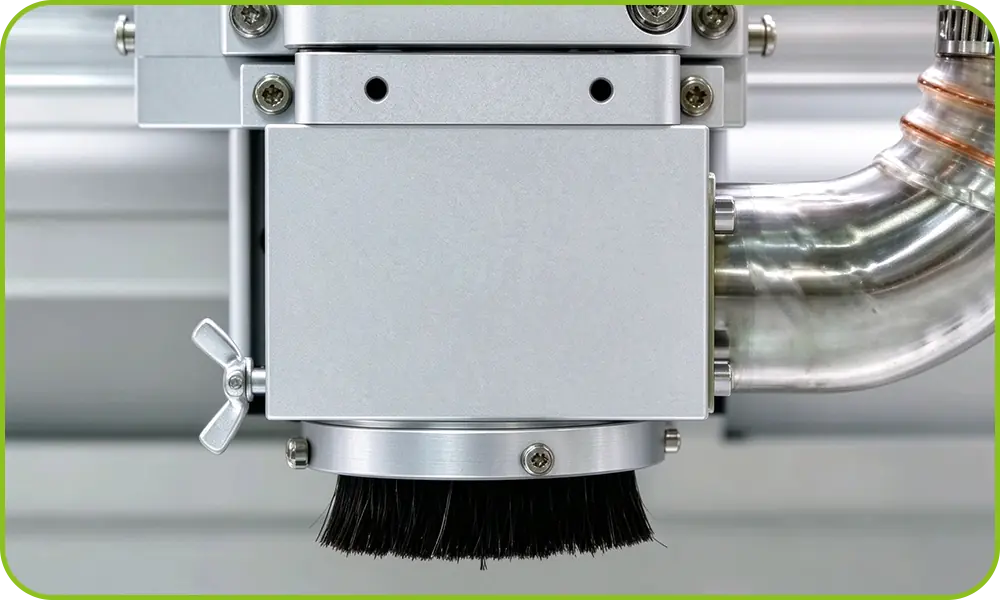

Anti-Static Dust Extraction

An anti-static brush-type upper dust extraction system works with a static eliminator to control dust and static electricity during routing.

ZM100 anti-static upper dust extraction system

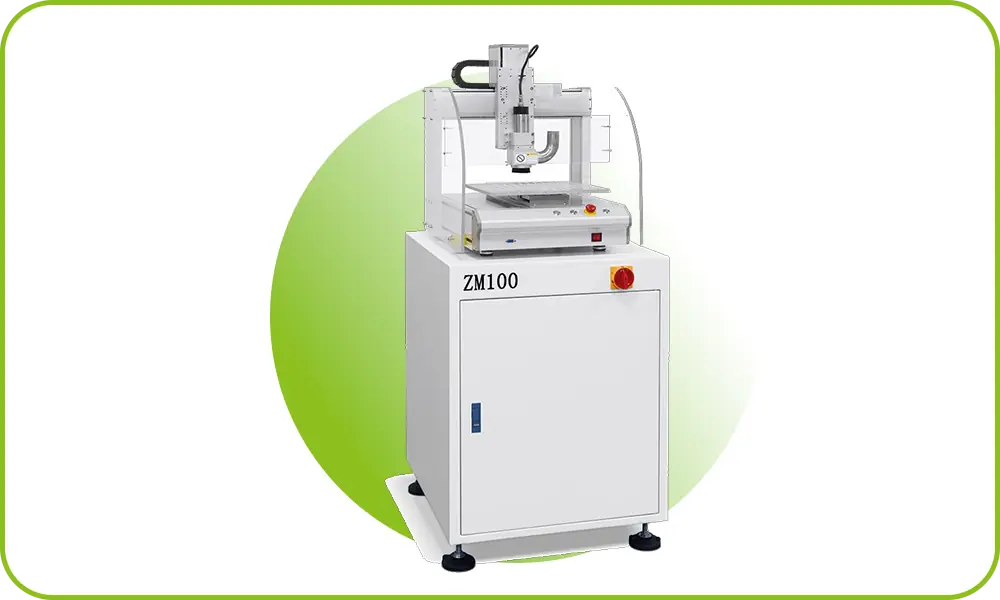

ZM100 compact benchtop PCB router machine

Compact Machine Size

The cutting unit measures only 640 × 550 × 650 mm, making it suitable for production areas with limited floor space.

Application

The ZM100 is designed for router depaneling of PCB panels, assembled PCBAs and semi-finished PCBs.

Straight, L-shaped, U-shaped, circular, arc and other irregular profiles can be processed through programmed routing paths, providing greater flexibility in PCB outline design than manual breaking, V-CUT separation or punching.

ZM100 Benchtop PCB Router Machine FAQ

1. Is the ZM100 suitable for frequent product changeovers?

Yes. When changing products, the cutting program can be adjusted and the corresponding fixture replaced, making it easier to switch between different production jobs.

2. What processing modes does the ZM100 support?

The machine supports step operation, multi-point simulation, single-point processing, full processing and automatic cycle processing.

3. Can the ZM100 cutting area be customized?

Yes. The standard valid cutting area is 300 × 220 mm, and customized cutting dimensions are available according to project requirements.

4. What type of motion drive does the ZM100 use?

The XYZ axes use stepper motors, combined with ball screws and linear guides to perform the cutting motion.

5. Can the ZM100 cutting speed be adjusted?

Yes. Cutting speed is adjustable from 1 to 80 mm/s, allowing the process speed to be set according to different PCB / PCBA requirements.

6. What information should I provide for a ZM100 quotation?

Please provide the PCB / PCBA dimensions, board thickness, panel drawing, routing profile, fixture requirements, expected production volume and any customized cutting-size requirements.

Contact SEPRAYS

Looking for a compact PCB router for handheld controller programming and multi-profile PCB / PCBA depaneling?

Send us your PCB / PCBA drawing, board dimensions, board thickness, routing profile, panel layout, fixture requirements and expected production volume, and SEPRAYS will help confirm the appropriate ZM100 configuration.

E-Mail:
millie@seprays.com

Address:
5th Floor, B2 Building Research Center Songshan Lake Intelligent Valley, Liaobu Town, Dongguan City, Guangdong Province, China.

Parameter

Technical Specifications

Parameter

ZM100
Valid Cutting Size

X300 × Y220 mm, Customizable
Cutting Function

Straight Line, L-Shape, U-Shape, Circle, Arc, Irregular Shapes, etc.
Process Table

Single Worktable
Repeat Precision

±0.02 mm
Cutting Precision

±0.05 mm
Maximum Moving Speed

XY: 300 mm/s; Z: 260 mm/s
Maximum Moving Travel

X: 310 mm / Y: 540 mm / Z: 90 mm
Spindle Speed

Max. 60,000 rpm, Adjustable
Tool Change Type

Manual Tool Change
Cutting Speed

1–80 mm/s, Adjustable
Operating Interface

Handheld Controller
Programming Method

Handheld Controller Tool-Position Teaching
Control Method

Control Card + Handheld Controller
XYZ Axis Drive

Stepper Motor
Router Bit Size

Ø0.5–3.0 mm
Power Requirement

AC220V / 50–60Hz / 2 kW
Cutting Unit Dimensions

640(W) × 550(D) × 650(H) mm
Cutting Unit Weight

Approx. 50 kg
