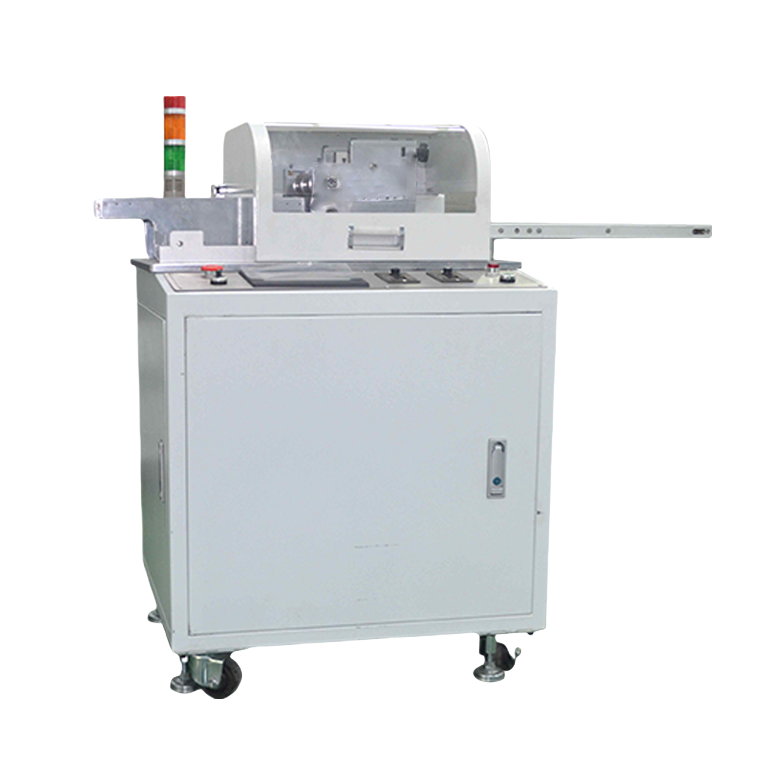

ZM30-LT Inline Multi-blade PCB Depaneling Machine

The ZM30-LT is an online multi-blade V-cut PCB depaneling machine designed for continuous production of small and segmented PCB panels, integrating feeding, depaneling and outfeed into one automated process.

Fully Automated Operation: The machine integrates automatic feeding, depaneling and outfeed for continuous inline PCB production.
Upper and Lower Multi-blade Structure: Upper and lower circular blade sets can be configured according to the number of PCB panel sections, making the machine suitable for different panel layouts.
Production Data Monitoring: The system can monitor and record operating time, production capacity and equipment fault information for easier production management.

Send us your PCB drawing and production requirements to get a ZM30-LT configuration and quotation.

Get A Quote

Details

Product Details

PCB panels can be loaded manually, by robot or from upstream equipment and then transferred into the cutting area. The machine separates the panel along the pre-scored V-grooves and transfers the separated products to the outfeed conveyor for the next production process.

Core Advantages

V-groove Detection Before Depaneling

The feeding mechanism moves the PCB to the detection position to check whether the V-groove is correctly aligned. If the position is incorrect, the machine can trigger a return or alarm before the normal depaneling process continues.

Changeover for Equal and Unequal Panel Spacing

The ZM30-LT supports PCB panels with both equal and unequal V-cut spacing. The machine can be adjusted according to the product width and the spacing between individual cutting positions for different panel layouts.

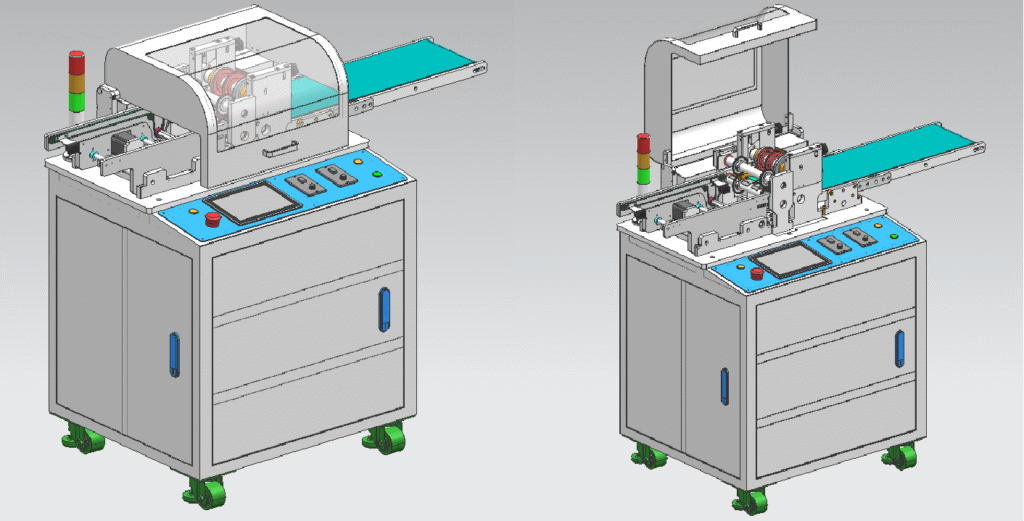

Safety Protection Design

The working area is equipped with protective guarding to separate operators from the moving cutting mechanism during operation. The protection structure helps reduce direct contact with moving parts while allowing the machine status to remain visible.

Single group vertical multi-blade panel splitter

Application

The ZM30-LT is suitable for LED PCBs, aluminum-based PCBs, and SMT PCBs with pre-scored V-grooves. It is designed for batch and inline production where multiple PCB sections need to be separated efficiently along defined V-cut lines. Actual compatibility should be confirmed based on the PCB thickness, panel layout, and V-cut spacing.

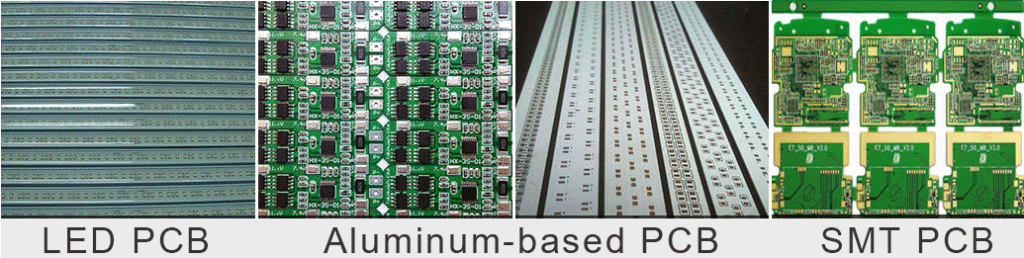

ZM30-LT PCB depaneling applications

ZM30-LT Online Multi-blade PCB Depaneling Machine FAQ

1. Can the ZM30-LT depanel PCBs without V-grooves?

The ZM30-LT is designed to separate PCB panels along existing V-grooves. PCB panels without V-cuts should be evaluated for another depaneling process according to their board structure.

2. Can the equipment handle PCB panels with different spacings?

Yes. Product changeover can be carried out according to the panel width and the spacing between the V-cut positions, including both equal and unequal spacing layouts.

3. How many products can the unloading robotic arm pick at one time?

The standard configuration can support single-panel or two-panel pickup. The required pickup quantity should be confirmed according to the actual product and project requirements.

4. What should I provide when requesting a quotation?

Please send your PCB drawing, product dimensions, board thickness, V-cut spacing, panel quantity, loading and unloading requirements, and target production capacity for configuration evaluation.

Why Choose SEPRAYS?

From daily operation to overseas support, SEPRAYS provides practical technical services to help customers use and maintain their PCB depaneling equipment more efficiently.

SEPRAYS operation and maintenance training

Operation and Maintenance Training

Helps production teams master machine operation to improve efficiency

SEPRAYS remote technical support

Remote Technical Support

Provides efficient technical coordination and problem-solving capabilities

SEPRAYS 24/7 service

24/7 Service

SEPRAYS 24/7 service support ensures rapid response to requests

SEPRAYS regular overseas visits

Regular Overseas Visits

Regular overseas visits to facilitate face-to-face technical exchanges

Contact SEPRAYS

Looking for an online V-cut PCB depaneling machine for your production line?

Send us your PCB drawing, panel layout, and production requirements, and SEPRAYS will help you evaluate whether the ZM30-LT is suitable for your application.

E-Mail: millie@seprays.com

Address: 5th Floor, B2 Building, Research Center Songshan Lake Intelligent Valley, Liaobu Town, Dongguan City, Guangdong Province, China

Request a Quote · Get Product Specifications · Discuss Your PCB Depaneling Project

Parameter

Parameters

ZM30-LT
Effective Cutting Size

150–300 mm
Separation Pitch

＞8 mm
Product Thickness

0.2–3.5 mm
Single Strip Width

＞8 mm
Production Capacity

Approx. 300 PCS/H, subject to product processing
Power Supply

AC 220V
Air Source

0.4–0.6 MPa
Machine Dimension

1250 × 615 × 1055 mm
Communication Interface

SMEMA
Network Interface

Reserved
Loading Mechanism Height from Ground

890 mm
Unloading Mechanism Height from Ground

883 mm
Horizontal Travel of Unloading Robot

700 mm, custom available for special requirements
Unloading Robot Gripping

Supports gripping single or double strips; number of gripped panels customizable
Discharge Delay

0–60 s
Working Environment

Clean Room
Ambient Temperature

0–40°C
Air Humidity

10%–80%
Ambient Noise

40–80 dB
Ambient Vibration Velocity

1–5 mm/s

Note: Products are subject to continuous optimization; specifications may be adjusted without prior notice. And we support customized requirements.
