Seprays: ZAM340 in-line laser depaneling machine
Details
Product Details

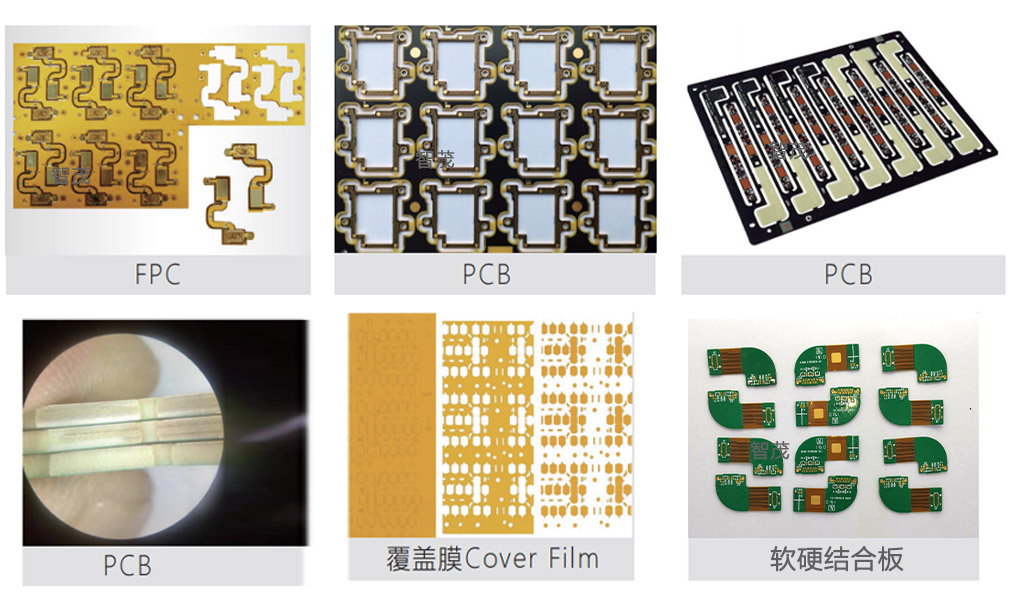

Application
Laser Depaneling Machine Features
1. CCD Vision Auto-Calibration System
High-speed CCD vision system for automatic alignment
Simulates cutting paths during programming to ensure precision
Full-panel scanning with offline programming boosts editing efficiency
2. Maintenance Reminder Function
Configurable service intervals (e.g., dust filter replacement)
Automated alerts prompt operator maintenance actions
3. Laser Height Sensing Module
Detects PCBA placement height in fixtures via laser measurement
Prevents cutting deviations caused by misaligned boards or debris
Eliminates barcode reading failures during depaneling
4. Integrated Barcode Management
On-board camera dynamically captures QR codes at any position
Optional barcode reader logs PCBA data to MES/Server systems
Automatically sorts NG boards based on code identification
5. High Operational Efficiency (>98% Uptime)
Proprietary software developed over 30 years
Zero board damage from software glitches (bug-free operation)
6. Centralized Control System (Optional)
Real-time monitoring via IP-based network management
Remote device control through mobile APP
Parameter
Parameter
-
ModelZAM340
-
Vaild cutting size350*350mm
-
Cutting functionTweening to staight line,L shape,U shape,Circle,Arc
-
Process tablesingle
-
Repeat precision±3μm
-
Cutting precision±20μm
-
Ambient Temperatur22℃±2℃(71.6℉±2℉)
-
Laser wavelength355nm/532nm
-
Platformgranite table
-
Automatic feeding3-Step track transfer
-
Receive Data FormaGerber, HPGL, Sieb & Meier, Excellon, ODB++
-
Operation systemWindows 7 / Windows 10
-
Target readsCCD automatic target capture Target shape is irregular, no Target, DIL is required Modules
-
Cutting softwareDreamCreaTor
-
Data processing softwareCircuitCAM 7
-
XYZ-axis driving modelinear +servo motor
-
Voltage/Power requirementAC380V 50/60Hz 2.5KW three phase
-
Pneumatic pressure requirement0.6MPa，50L/min
-
Dimensions(W*D*H)940mm x 1,720mm x 1,650mm
-
Weight1500KG
