Large PCB Depaneling Machine GAM360AT | Automated Single-Table Cutting & Loading
Details
Product Details
Characteristic
Integrated Cutting & Placement Worktable
Performs both depaneling and board placement on a single worktable, significantly improving production efficiency.
Auto-Focus Vision System
Equipped with an automatic focusing camera that eliminates manual adjustments for consistent precision.
High-Speed Spindle Technology
Advanced spindle ensures minimal cutting stress with high accuracy. Features automatic tool changing for uninterrupted operation.
Intelligent Dust Monitoring
Built-in dust sensor triggers alerts when collection efficiency drops, maintaining optimal air quality and safety.
MES Production Integration
Seamlessly connects with Manufacturing Execution Systems for real-time data tracking and equipment performance monitoring.

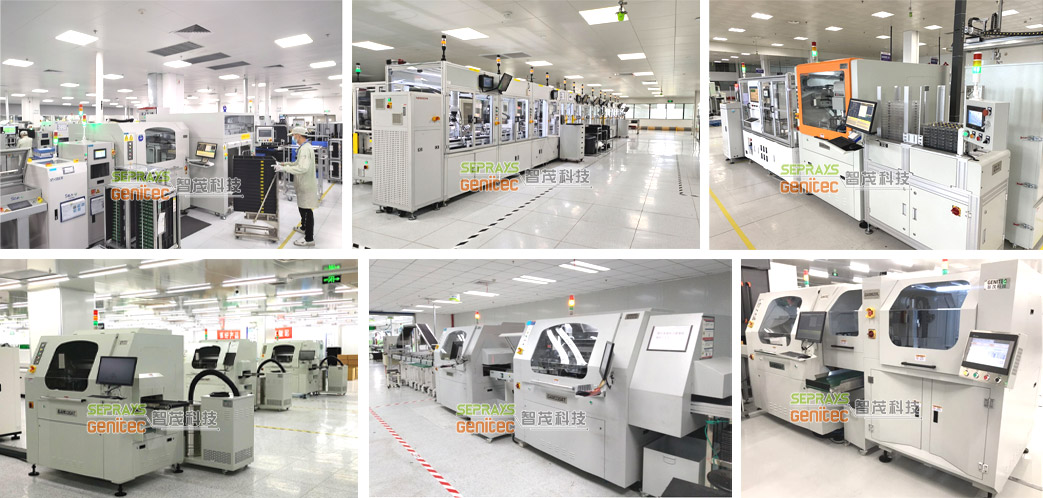

Application Scenarios
Parameter
Parameter
-
ItemsGAM360AT
-
Valid cutting size600*500mm
-
Cutting FunctionTweening to straight line,circle and Are
-
Process tableSingle table
-
Repeat precision±0.01mm
-
Cut precision±0.05mm
-
Loading methodTrack convey
-
Unloading methodConveyor or Track convey
-
Spindle speedMAX60,000RPM
-
Spindle change methodAuto-tool change
-
Program teaching modeIntuitive teaching by CCD color image input
-
Cut speed1-100mm/s
-
Milling bit size0.8-3.0mm
-
Pneumatic pressure requirment0.6MPa，200L/min
-
Dust CollectorTS300L
-
Cut spindle size(W*D*H)2309*1606*1717mm
-
Voltage/Power requirementAC220V，1phase,50/60HZ，4KW
-
Weight930KG
What services do you provide?
What services do you provide?
We provide one-stop automated PCB depaneling solutions: laser, routing, punching and V-CUT.
Can your machines handle different thicknesses of PCBs?
Yes, our machines are designed to handle various PCB thicknesses. We can provide customization and options to ensure smooth processing of both rigid and flex boards.
What type of training do you provide for your machines?
We provide comprehensive on-site training, covering machine operation, maintenance, and troubleshooting. We also offer ongoing technical support via phone and email.
What after-sales services can you provide?
●Exclusive service:
We will give users feedback within 10 minutes on any problems they encounter when using the device and establish a 1V1 exclusive after-sales service group for users.
●Remote service:
Provide users with a 7*24H hotline based on feedback on fault information, analyze, locate, and solve the fault through remote telephone support,remote login, and other methods.
●On-site service:
Arrive at the work site within 8 hours and solve the problem within 1 working day. 2-4 days of training on equipment safety operation and application.Any breach of contract will be handled by the contract provisions.
●Service locations:
We have sales and service support in 31 countries and regions overseas, responding to customers’ current and future needs as soon as possible.
●Benchmark service:
Follow-up call after each visit; video tutorials + telephone guidance on parts replacement and equipment maintenance; free follow-up month in December every year. We continue to collect user suggestions, continuously update and iterate the software, improve user production quality and efficiency, and provide lifelong maintenance.
×
