High-Speed, High-Precision Offline PCB Depaneling Machine
Details
Product Details
Product Features
Four-axis motion control platform, equipped with high-speed high-definition digital CCD camera, visual alignment and correction, the camera is equipped with barcode recognition capability.
High-precision spindle, speed 60000RPM, using the double-station platform one-in-one-out method to replace PCBA, greatly reducing work waiting time and increasing production.
Quick and easy programming, equipped with full-plate scanning programming system, reducing line change time.
Equipped with servo motor + grinding screw, guide rail; provide customers with a high-performance, high-safety, high-stability PCBA board separation equipment.

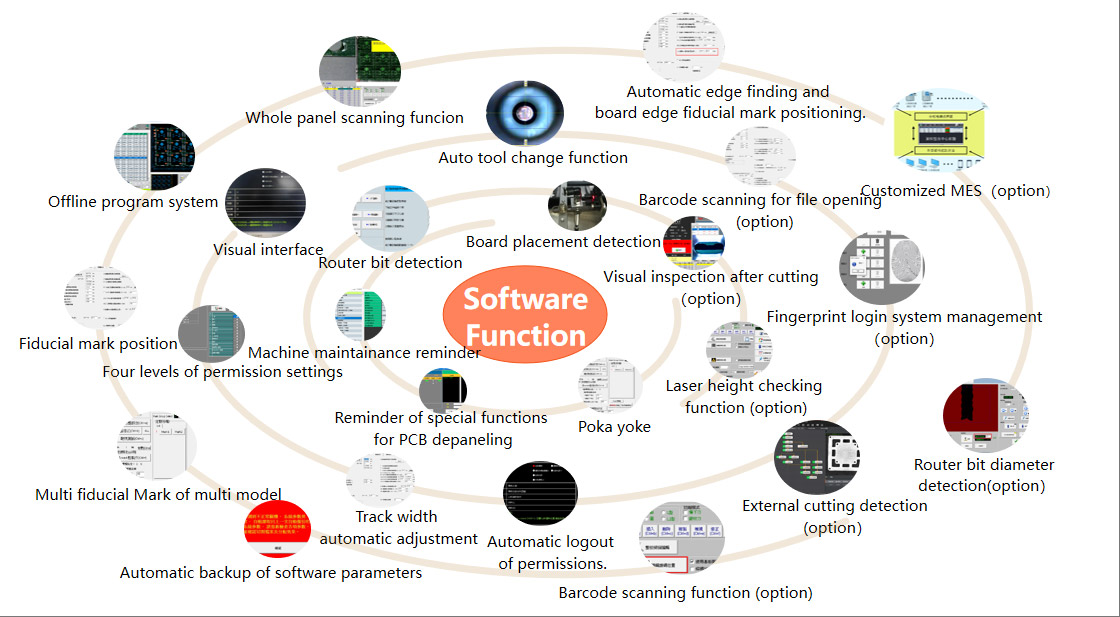

Application
Parameter
Parameter
-
ItemZM300
-
Valid Cutting SizeTop dust collection：X350*Y380mm，Bottom dust collection：X290*Y320mm
-
Cutting ShapeTweening to line,L shape,U shape,Circle,Are
-
Processing TableDual-table
-
Repeat Precision±0.02mm
-
Cutting Precision±0.05mm
-
Max.Movement SpeedX:1000mm/s，Y1/Y2:1000mm/s，Z:300mm/s
-
Max.moving routingX:750mm，Y1/Y2:510mm，Z:100mm
-
Spindle SpeedMAX.80000RPM Adjustable
-
Tool Change TypeManual Tool Change（Standard）/Auto tool change（Option）
-
Cutting Speed1-100mm/s Adjustable
-
Operating InterfaceStandard Operation Interface Windows 10"
-
Program teaching modeColor CCD Imaging Vision-based Teaching Input
-
PrUSB Interface
-
Control MethodPC+Control card
-
XYZ Driving modeAC Servo motor
-
Size of milling toolø0.5-3.0mm
-
Main Power Supply SpecificationsAC220V 50/60HZ 2KW
-
Main Air Supply0.6Mpa
-
Dimensions of machine（W*L*H）1240mm*1050*1450mm
-
Machine Weight500KG
-
Dust Collector Power4HP / 3HP / 5HP
-
Dimensions of dust collector（W*L*H）600*500*1300mm/600*600*1600mm/813*925*1800mm
-
Dust Collection MethodTop dust collection/Bottom dust collection/Bottom dust collection
-
Dust Collector Power SpecificationsAC220V/380V 50/60HZ
-
Weight of dust collector125KG/165KG/290KG
What services do you provide?
What services do you provide?
We provide one-stop automated PCB depaneling solutions: laser, routing, punching and V-CUT.
Can your machines handle different thicknesses of PCBs?
Yes, our machines are designed to handle various PCB thicknesses. We can provide customization and options to ensure smooth processing of both rigid and flex boards.
What type of training do you provide for your machines?
We provide comprehensive on-site training, covering machine operation, maintenance, and troubleshooting. We also offer ongoing technical support via phone and email.
What after-sales services can you provide?
●Exclusive service:
We will give users feedback within 10 minutes on any problems they encounter when using the device and establish a 1V1 exclusive after-sales service group for users.
●Remote service:
Provide users with a 7*24H hotline based on feedback on fault information, analyze, locate, and solve the fault through remote telephone support,remote login, and other methods.
●On-site service:
Arrive at the work site within 8 hours and solve the problem within 1 working day. 2-4 days of training on equipment safety operation and application.Any breach of contract will be handled by the contract provisions.
●Service locations:
We have sales and service support in 31 countries and regions overseas, responding to customers’ current and future needs as soon as possible.
●Benchmark service:
Follow-up call after each visit; video tutorials + telephone guidance on parts replacement and equipment maintenance; free follow-up month in December every year. We continue to collect user suggestions, continuously update and iterate the software, improve user production quality and efficiency, and provide lifelong maintenance.
×
