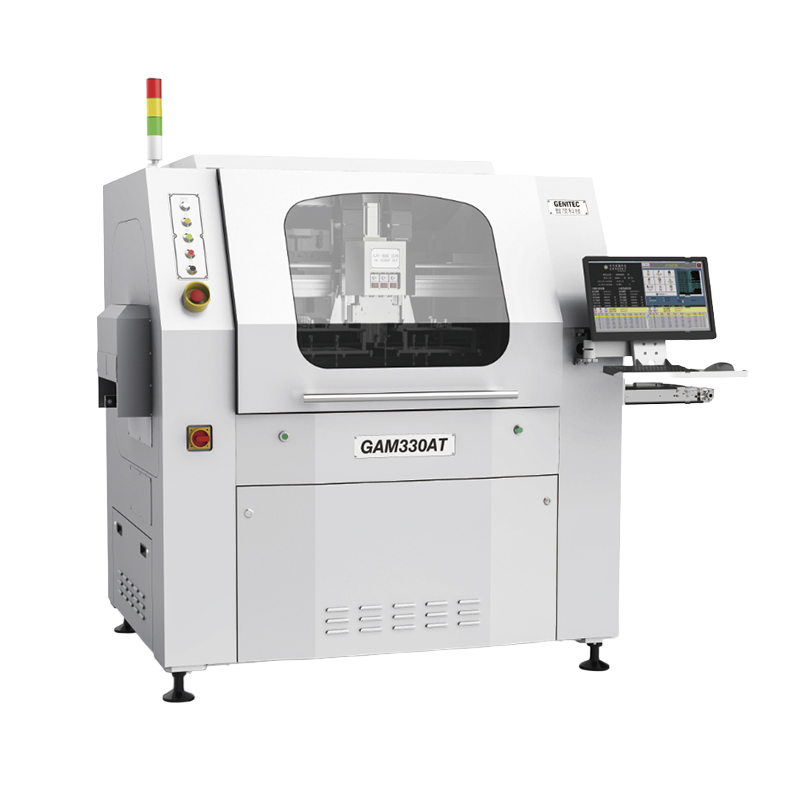

GAM330AT fully automatic PCB depaneling machine
Details
Product Details
Fully Automatic PCB Depaneling System
1、Complete Automation: Self-feeding operation with automatic sorting and discharge of finished boards and scrap material. Ideal for streamlined automated production lines.
2、High-Precision Vision System: Integrated high-speed CCD vision ensures accurate alignment and correction, perfect for high-precision, high-volume depaneling.
3、Superior Cutting Performance: Utilizes a high-speed spindle for cutting/splitting. Delivers minimal stress on boards, high accuracy, and handles complex shapes effortlessly.
4、Dual-Table Efficiency: Features dual moving tables enabling simultaneous depaneling and board loading/unloading. Eliminates waiting time, boosts throughput, and maximizes productivity.
5、Versatile Size Compatibility: Compact units ideal for small, multi-panel PCBs (e.g., smartphones, digital cameras, GPS, PDA, modules). Larger models accommodate big boards (e.g., digital TVs, PC motherboards, workstations, servers).
6、Flexible Output Options: Choose from various board collection solutions to achieve complete, labor-saving automation.
Characteristic
Maintenance reminder
Maintenance time can be set.
Time to clean the dust filter bag.
The system will remind operators to perform maintenance on the equipment regularly.
Quick line change
By calling the existing program, fixture errors are avoided, enabling rapid program retrieval and quick changeover.
High utilization rate
With over 30 years of independent software development, the PCB depaneling machine uses self-developed software, ensuring stability and reliability, and preventing board damage caused by bugs.
Exclusive Feature
The PCB depaneling machine uses an integrated welded design structure, ensuring stability and high strength.
It is made of cast aluminum with a one-piece molding process, offering excellent oxidation resistance, no deformation, no displacement, long service life, and guaranteed precision.
Dust Collection Function – Eliminate Dust Hazards
Adopt High-Power Dust Collector
Dust Filtration with HEPA Grade
Equipped with Negative Pressure Detection, providing real-time alerts for dust collection status
Equipped with Floating Brushes (Invention Patent No. ZL201721620742.X) to enhance dust collection efficiency
Central Control System Management
Optional Central Control System: Unified management and real-time monitoring via network IP.
Remote Device Unified Management: Remote monitoring via mobile app.
Application

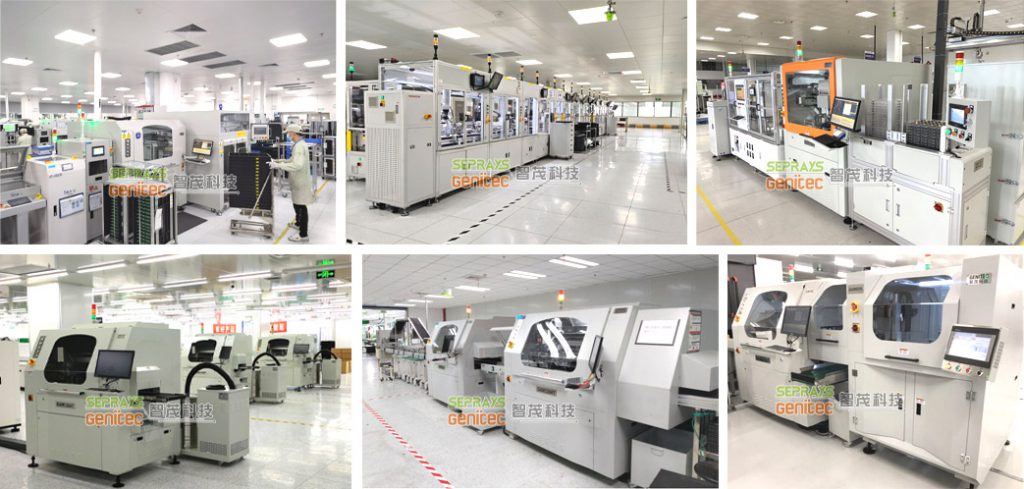

Online fully automatic PCB board splitter factory real shot application case
Parameter
Parameter
-
ItemsGAM330AT
-
Valid cutting size350*300mm
-
Cutting FunctionTweening to straight line,circle and Are
-
Process tableDual tables
-
Repeat precision±0.01mm
-
Cut precision±0.05mm
-
Loading methodTrack convey
-
Unloading methodConveyor or Track convey
-
Spindle speedMAX80,000RPM
-
Spindle change methodAuto-tool change
-
Program teaching modeIntuitive teaching by CCD color image input
-
Cut speed1-100mm/s
-
Milling bit size0.8-3.0mm
-
Pneumatic pressure requirment0.6MPa，160L/min
-
Dust CollectorTS300L
-
Cut spindle size(W*D*H)2105*1445*1705mm
-
Voltage/Power requirementAC220V，1phase,50/60HZ，4KW
-
Weight800KG
