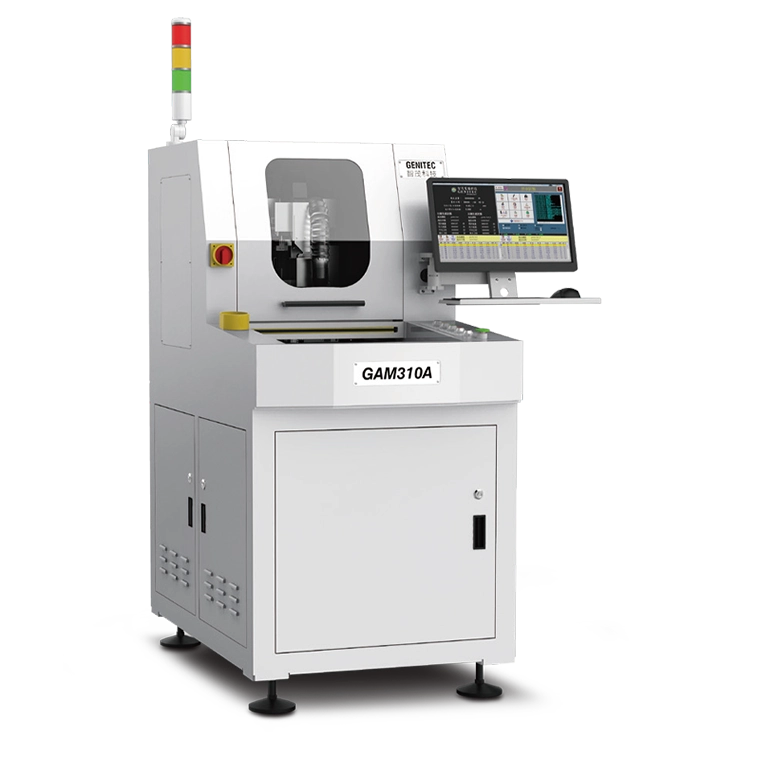

GAM310A Offline Automatic PCB Router Machine

GAM310A Offline Automatic PCB Router Machine

The GAM310A is a single-worktable offline PCB router machine for automated routing of PCBA panels within a 350 × 300 mm cutting area.

  • Compact Single-Worktable Design: Small footprint for space-saving offline production.
  • High-Speed CCD Vision Correction: Helps improve board positioning and routing accuracy.
  • Selectable Upper or Lower Dust Extraction: Choose the dust-extraction method to match your PCBA process.

Send us your PCBA drawing and production requirements for a GAM310A configuration and quotation.

Get A Quote
Details

Product Details

    Overview

    The GAM310A is designed as a compact offline routing station with a fixed single worktable. PCBA panels are placed in dedicated fixtures and processed through stored cutting programs, making the machine straightforward to deploy as an independent depaneling workstation.

    Core Advantages

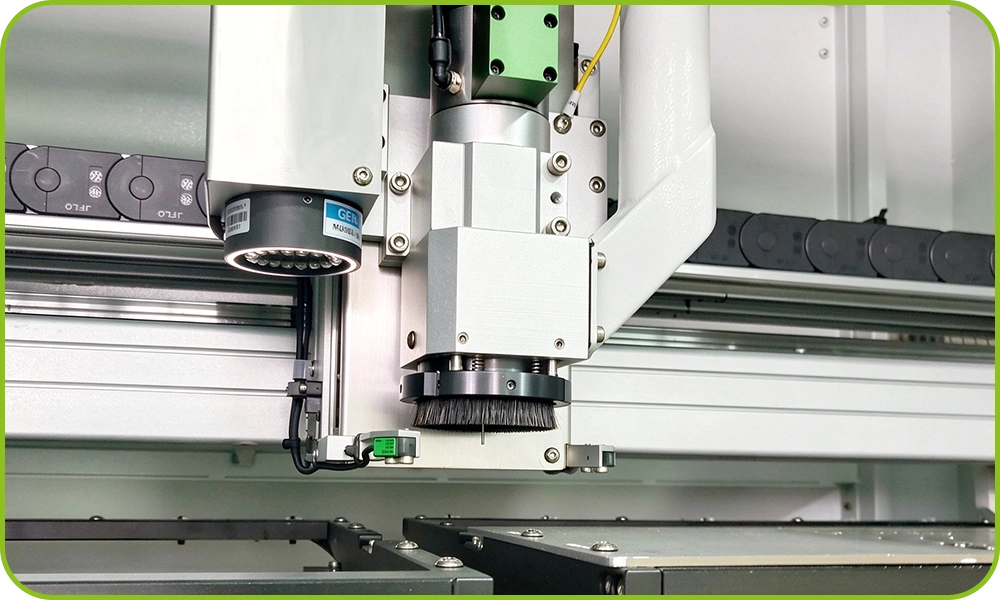

    GAM310A low-stress PCBA routing with floating brush and precision spindle

    Low-Stress Depaneling with Smooth Board Edges

    The floating-brush structure works with the high-speed precision spindle to reduce routing stress while delivering smooth board edges and stable cutting accuracy.

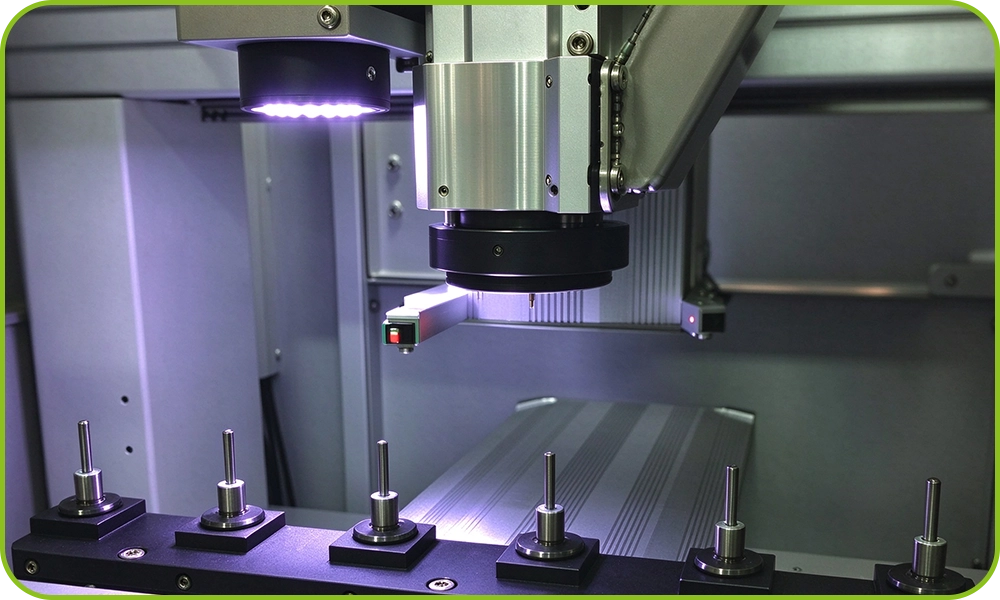

    ESD Spindle with Automatic Tool Change

    The ESD spindle with automatic tool change reduces manual router-bit replacement while providing electrostatic protection during PCBA routing.

    GAM310A ESD spindle with automatic tool change

    GAM310A offline programming for faster PCBA product changeover

    Offline Programming

    Routing programs can be prepared offline to reduce machine waiting time, while stored programs can be recalled quickly for faster product changeover.

    Application

    The GAM310A is suitable for offline PCB and PCBA router depaneling where assembled panels need to be separated with a router bit in a dedicated workstation.

    Its 350 × 300 mm working range makes it suitable for PCBA panels that fit within this processing area and require fixture-based routing.

    GAM310A Automatic PCB Router Machine FAQ

    1. Can the GAM310A work with a robotic arm?

    Yes. An optional automatic upper cover can be configured for projects that require robotic loading and unloading.

    2. Can the GAM310A automatically adjust router-bit cutting depth?

    Yes. The Z-axis supports automatic compensation settings for adjusting router-bit cutting depth according to the routing requirement.

    3. How are GAM310A routing programs backed up?

    The machine supports USB data transfer for routing-program backup and file transfer.

    4. Does the GAM310A include a safety light curtain?

    Yes. The GAM310A is equipped with a safety light curtain for operator-area protection.

    5. What information should I provide for a GAM310A quotation?

    Please provide the PCB / PCBA dimensions, board thickness, panel drawing, routing path, target throughput, dust-extraction requirements and any robotic or automation requirements so that the appropriate configuration can be confirmed.

    Contact SEPRAYS

    Looking for a compact automatic PCB router for your offline PCBA depaneling station?

    Send us your PCB / PCBA drawing, board dimensions, board thickness, routing profile, panel layout, target throughput and automation requirements, and SEPRAYS will help determine the appropriate GAM310A configuration.

    E-Mail:
    millie@seprays.com

    Address:
    5th Floor, B2 Building Research Center Songshan Lake Intelligent Valley, Liaobu Town, Dongguan City, Guangdong Province, China

    Send us your PCBA drawing and production requirements to get a GAM310A routing solution and quotation.

Parameter

Parameter

    GAM310A Technical Specifications

    • Parameters
      GAM310A
    • Valid Cutting Size
      350 × 300 mm
    • Cutting Function
      Straight Line, L-Shape, U-Shape, Circle and Arc
    • Process Table
      Single Worktable
    • Repeat Precision
      ±0.01 mm
    • Cutting Precision
      ±0.05 mm
    • Maximum Moving Speed
      X/Y: 1000 mm/s; Z: 600 mm/s
    • Maximum Moving Travel
      X: 450 mm / Y: 480 mm / Z: 90 mm
    • Spindle Speed
      Max. 100,000 rpm, Adjustable
    • Tool Change Type
      Automatic Tool Change
    • Safety Protection
      Safety Light Curtain
    • Cutting Speed
      1–100 mm/s, Adjustable
    • Operating System
      Windows 10
    • Programming Method
      Intuitive Teaching by CCD Color Image Input
    • Program Backup
      USB Data Transfer
    • Control Method
      Precision Multi-Axis Control System
    • XYZ Axis Drive
      AC Servo Motor
    • Router Bit Size
      φ0.8–3.0 mm
    • Power Supply
      AC220V / 50–60Hz / 1.5 kW / 1 Phase
    • Pneumatic Requirement
      0.6 MPa / 50 L/min
    • Machine Dimensions
      840 × 1208 × 1530 mm
    • Machine Weight
      400 kg
    • Dust Collector
      TS300
