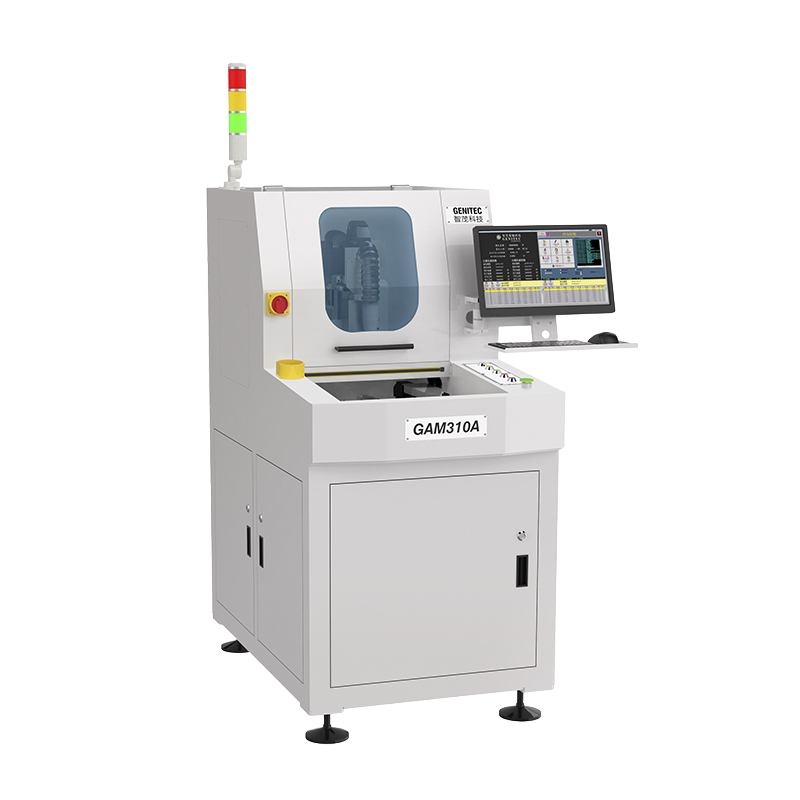

GAM310A Offline Automatic Board Separator
Details
Product Details
Introduce：
Single workbench occupies a small area and has high applicability.
Equipped with high-speed CCD visual automatic correction system to improve recognition efficiency.
Adopt imported high-speed spindle, with small splitting stress and high precision.
Equipped with high-suction upper dust collector, with good dust collection effect.
Windows operating system, safe, stable, easy to learn and use.

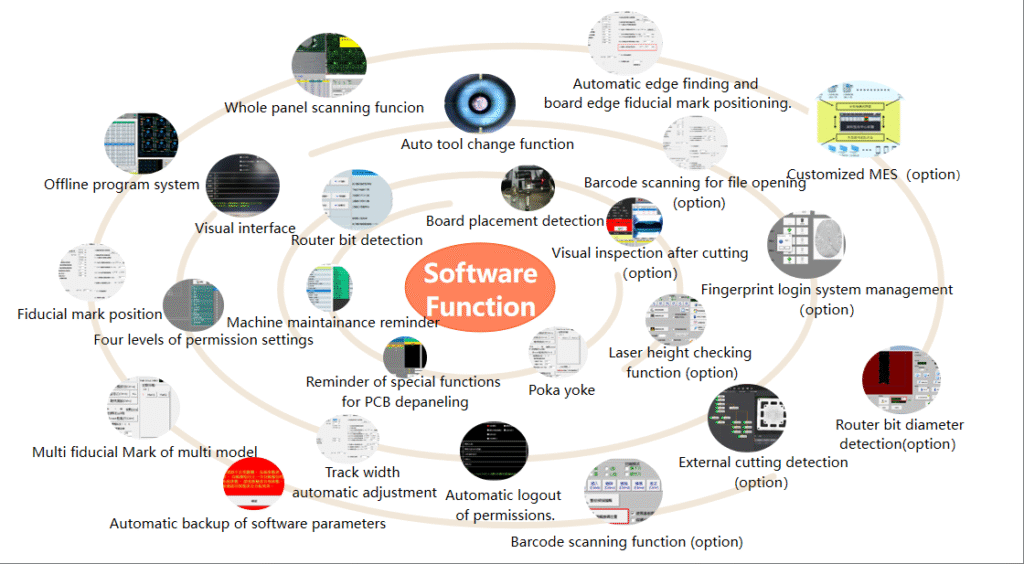

Characteristic
Operation Interface
The panel separation function and parameters for end mills/fixtures are easy to set.
Processing efficiency and end mill usage data are clearly displayed.
The historical message pane makes it easy to query operation records.
It features router bit life management, maintenance alerts, and spindle speed settings management.
Router Bit Detection and Management
The end mill height can be automatically compensated to ensure the correct cutting depth.
During the panel separation process, the system detects abnormalities such as end mill slippage, broken tools, or improper installation, preventing PCBA damage.
An optional end mill diameter detection function, combined with end mill usage records, makes tool management easier.
Four-level password authorization management
The account password can be set to differentiate user permissions for different levels of personnel according to management needs.
A fingerprint recognition module can be added for convenient management.
CCD Vision Automatic Calibration System
Equipped with high-speed CCD vision automatic calibration system.
Can simulate cutting paths to assist in program programming, ensuring cutting path accuracy.
Combined with full-board scanning and offline programming functions, it enhances path editing efficiency.
Offline programming, full-panel scanning
Cutting programs can be edited offline and directly imported into the machine, improving utilization rate.
Simpler, more user-friendly, with automatic recognition of cutting paths.
After full-board PCB scanning, editing allows for quick modifications to cutting paths, improving programming efficiency.
Cutting line colors are selectable, making it easier to identify different color PCBs.
High-speed cutting spindle
Imported high-speed, high-precision spindle.
Low cutting stress, smooth edges, and high precision.
High-precision spindle speed: 80,000 rpm/min
Application：
Suitable for PCBA sub-boards of various small multi-connected boards such as mobile phones, digital cameras, GPS, PDA, etc.
Parameter
Parameter
-
ITEMSGAM310A
-
Valid cutting area350*300mm
-
Process tableSingle tables
-
Cutting functionTweening to line, L shape, Circle, Arc
-
Repeat precision±0.01mm
-
Cutting precision±0.05mm
-
Max moving tripX:450mm,Y:480mm,Z:90mm
-
Spindle speedMax.80000RPM Adjustable
-
Size of milling toolØ0.8-3.0mm
-
Cutting speed1-100mm/s
-
Operating systemWindows10
-
Program teaching methodIntuitive teaching by CCD color image input
-
Control methodPrecision multi-axis control system
-
XYZ axis driving modeAC Servo motor
-
PowerSingle phase AC220V 50/60HZ
-
Dimensions (W x D x H)mm840*1208*1530mm
-
Dust collectorTS300
