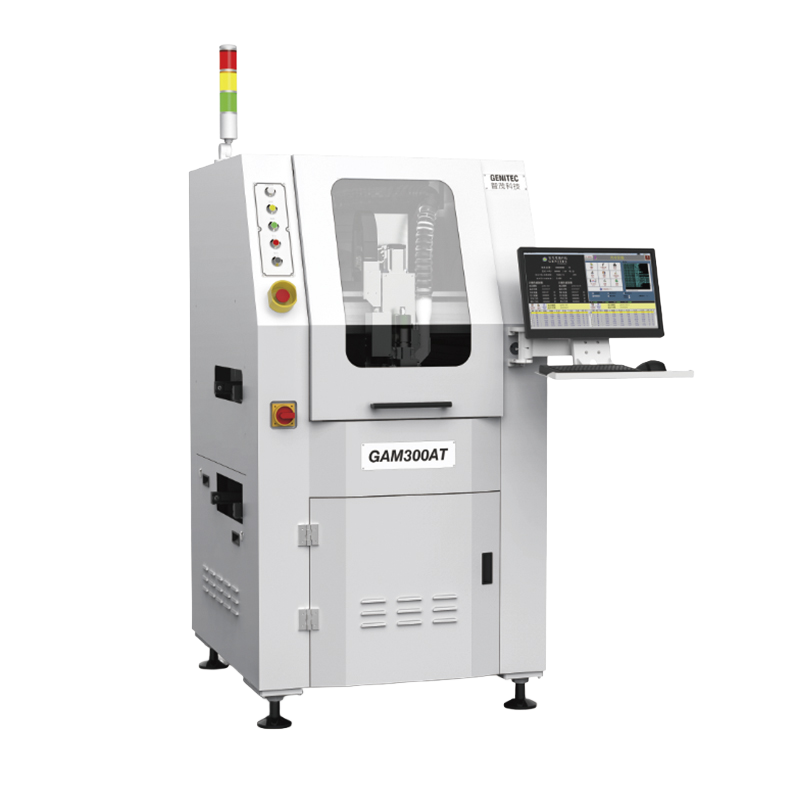

GAM300AT Double-layer track online PCB board separation machine

It’s suitable to use on an SMT production line that contains carriers in all manufacturing processes and can reduce labor costs.

It’s suitable to use on the technology that does not have a board edge, power adapter, and so on.

Equipped with a high-speed CCD vision alignment system.

Equipped with a high-speed ESD spindle for the function of auto tool-change to reduce the PCBA damage due to static.

Inquiry

Details

Product Details

Introduce:

Suitable for SMT online full-carrier process, equipped with carrier return track to realize full-line automation.

Adopt high-speed spindle, small cutting stress, high precision, standard automatic tool change module for automated operation.

Powerful vacuum cleaner with dust detection alarm function to ensure the vacuuming effect.

Characteristic:

Patented floating brush

The patented floating brush reduces stress during cutting

Allowing the milling cutter to be used in multiple stages and extending its lifespan

Maintenance reminder

Maintenance time can be set.

Time to clean the dust filter bag.

The system will remind operators to perform maintenance on the equipment regularly.

High utilization rate

With over 30 years of independent software development, the PCB depaneling machine uses self-developed software, ensuring stability and reliability, and preventing board damage caused by bugs.

Exclusive Feature

The PCB depaneling machine uses an integrated welded design structure, ensuring stability and high strength.

It is made of cast aluminum with a one-piece molding process, offering excellent oxidation resistance, no deformation, no displacement, long service life, and guaranteed precision.

Dust Collection Function – Eliminate Dust Hazards

Adopt High-Power Dust Collector

Dust Filtration with HEPA Grade

Equipped with Negative Pressure Detection, providing real-time alerts for dust collection status

Equipped with Floating Brushes (Invention Patent No. ZL201721620742.X) to enhance dust collection efficiency

Central Control System Management

Optional Central Control System: Unified management and real-time monitoring via network IP.

Remote Device Unified Management: Remote monitoring via mobile app.

Case:

Applicable to industries such as edgeless board process, power adapter, mobile phone, etc.

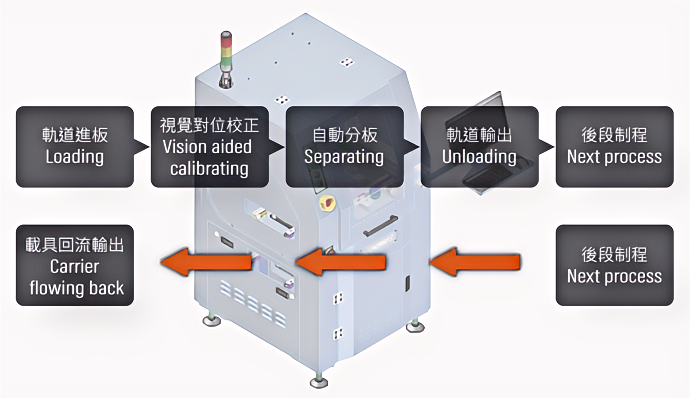

application scenarios

Parameter

Items

GAM300AT
Valid cutting size

350×300mm
Cutting Function

Tweening to straight line, circle and Arc
Process table

Single worktable
Repeat precision

±0.01mm
Cut precision

±0.05mm
Loading method

Track convey
Unloading method

Track convey
Spindle speed

Max. 80,000 RPM
Spindle change method

Auto-tool change
Program teaching mode

Intuitive teaching by CCD color image input
Cut speed

1-100mm/s
Milling bit size

0.8-3.0mm
Pneumatic pressure requirement

0.6MPa, 20L/min
Dust Collector

TS300L
Cut spindle size (W×D×H)

930×1101×1689mm
Voltage/Power requirement

AC220V, 1 phase, 50/60Hz, 4KW
Weight

550kg
