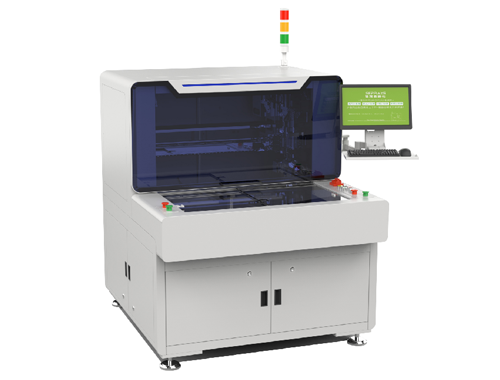

ZM300N Offline Automatic PCB Depaneling Machine

The ZM300N is an offline dual-worktable PCB router machine for precise and flexible PCBA depaneling.

Low-Stress Depaneling: The floating brush and high-speed spindle help reduce routing stress and maintain smooth board edges.
MES Control and Production Traceability: Supports centralized equipment monitoring and production-data traceability.
Windows 10 Operating System: A familiar interface makes machine operation easier to learn and use.

Send us your PCBA dimensions, panel drawing, routing path and production requirements to get a ZM300N / ZM300NL configuration and quotation.

Get A Quote

Details

Product Details

Overview

The ZM300N series uses a fixture-based offline routing process with precision multi-axis motion control to separate PCBA panels along programmed cutting paths.

ZM300N and ZM300NL provide different processing ranges, with both models supporting a 2-in-1 combined worktable mode for larger PCBA panels.

Core Advantages

ZM300N high-speed CCD vision correction for PCBA routing

High-Speed CCD Vision Auto Correction

Automatically corrects cutting position to improve PCBA routing accuracy.

Dual-Worktable Operation

One worktable can route while the other is loaded or unloaded, reducing production waiting time.

ZM300N dual-worktable PCB depaneling operation

ZM300N automatic tool change and broken router bit detection

Automatic Tool Change and Broken-Bit Detection

Automatically changes router bits and detects broken tools to reduce manual intervention.

Application

The ZM300N series is designed for offline router depaneling of assembled PCB / PCBA panels.

It supports straight, L-shaped, U-shaped, circular, arc and point cutting paths, making it suitable for PCBA panels with different routing profiles.

For larger panels, ZM300N and ZM300NL can also use the 2-in-1 combined worktable configuration to extend the available processing area.

ZM300N Offline Automatic PCB Depaneling Machine FAQ

1. What dust extraction method does the ZM300N use as standard?

The standard configuration uses upper dust extraction. Lower dust extraction can also be evaluated according to the project requirements.

2. Does the ZM300N support offline programming?

Yes. Routing programs can be prepared offline, reducing machine waiting time during new-product setup and production changeover.

3. Can the ZM300N automatically clamp the PCB?

Yes. Automatic fixture clamping is available as an option. After the operator loads the PCB, the fixture can automatically secure the board.

4. What optional detection functions are available?

Optional functions include router-bit diameter detection, laser height measurement and barcode-camera scanning for tool monitoring, board-position detection and production identification.

5. Does the ZM300N support different user access levels?

Yes. The control system supports multi-level user permissions and automatic account timeout to help manage access for operators, engineers and supervisors.

6. What information should I provide for a ZM300N / ZM300NL quotation?

Please provide the PCB / PCBA dimensions, board thickness, panel drawing, routing path, target throughput, dust-extraction requirements and any MES, scanning or laser-height-measurement requirements.

Contact SEPRAYS

Looking for an offline PCB depaneling machine for dual-worktable production, larger PCBA panels or flexible automated routing?

Send us your PCB / PCBA drawing, board dimensions, board thickness, routing profile, panel layout, target throughput and automation requirements, and SEPRAYS will help determine whether ZM300N or ZM300NL is the right configuration for your project.

E-Mail:
millie@seprays.com

Address:
5th Floor, B2 Building Research Center Songshan Lake Intelligent Valley, Liaobu Town, Dongguan City, Guangdong Province, China

Parameter

Technical Specifications

Parameters

ZM300N / ZM300NL
Cutting Function

Straight Line, L-Shape, U-Shape, Circle, Arc and Point
Process Table

Dual Worktables
External Dust Extraction

Upper Dust Extraction
Tool Change Type

Automatic Tool Change
Router Bit Detection

Automatic Broken-Bit Detection
Safety Protection

Safety Light Curtain
Repeat Precision

±0.01 mm
Cutting Precision

±0.05 mm
Maximum Moving Speed

X/Y: 1000 mm/s; Z: 500 mm/s
Spindle Speed

Max. 100,000 rpm
Cutting Speed

1–100 mm/s, Adjustable
Operating System

Windows 10
Programming Method

Intuitive Teaching by CCD Color Image Input
Control Method

Precision Multi-Axis Control System
XYZ Axis Drive

AC Servo Motor
Router Bit Size

Φ0.8–Φ3.0 mm
Pneumatic Requirement

0.6 MPa / 120 L/min

Note: Products are subject to continuous optimization; specifications may be adjusted without prior notice. And we support customized requirements.

ZM300N / ZM300NL Model Differences

Parameter

ZM300N

ZM300NL
Valid Cutting Size

370 × 420 mm

470 × 520 mm
2-in-1 Combined Worktable Size

838 × 420 mm

1038 × 520 mm
Maximum Moving Travel

X: 860 / Y: 720 / Z: 100 mm

X: 1060 / Y: 820 / Z: 100 mm
Power Requirement

AC220V / 50–60Hz / 2.0 kW

AC220V / 50–60Hz / 2.5 kW
Machine Dimensions

1360 × 1480 × 1500 mm

1560 × 1680 × 1500 mm
Machine Weight

642 kg

770 kg

Note: Products are subject to continuous optimization; specifications may be adjusted without prior notice. And we support customized requirements.
